You may be able to verify that alignment of window and door frames by checking them with a level. Other signs of differential settlement include breaks in seams between drywall panels, tilting chimneys, bulging walls, and exterior stairs that begin to tilt or sink.
Full Answer
What are differential settlements?
What are differential settlements? Settlement of the foundation soil is a vertical displacement of the soil surface caused by the workload of the building. During and after the building construction, settlement of the foundation structure is considered normal and acceptable to a certain extent.
How do I know if my house has differential settlement?
You may be able to verify that alignment of window and door frames by checking them with a level. Other signs of differential settlement include breaks in seams between drywall panels, tilting chimneys, bulging walls, and exterior stairs that begin to tilt or sink.

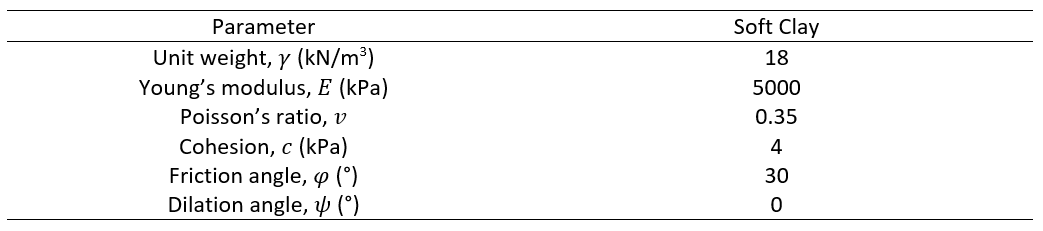

What determines the size of a settlement in a foundation?
The size of a foundation structure settlement is primarily dependent on the weight of the structure and the deformation characteristics of foundation soil. When analyzing this problem, it is necessary to distinguish between the concepts of uniform and differential settlements. What are differential settlements?
What is the maximum differential settlement in a brick wall crack?
For maximum angular distortion of 1/300 (δ/L), in a frame building cracking in brick panels or in brick wall of load bearing building will occur at maximum differential settlement (Δ) of 32 mm (1.25 inches).
What is differential settlement?
Differential settlement is the term used in structural engineering for a condition in which a building's support foundation settles in an uneven fashion, often leading to structural damage. All buildings settle somewhat in the years following construction, and this natural phenomenon generally causes no problems if ...
How to tell if a building has differential settlement?
Obvious signs include cracks in the concrete slab or foundation walls supporting the building, or doors and windows that are out of square or hard to open and close.
Why does my foundation settle?
Soil that is either too dry or too wet can cause foundation settlement. When moisture builds up, soils saturate and lose their load-bearing capacity. Dry soils shrink in volume. Either situation can cause uneven settling of the foundation.
What is uneven foundation settling?
Uneven foundation settling—differential settlement —is best prevented by careful analysis of the soil before a building foundation is constructed. The best soils for building foundations are nonexpansive —meaning that they contain little clay or silt content. Ideally, the building site will be native soil rather than a site artificially filled with outside soil.
How to tell if a foundation is differentially settled?
Other signs of differential settlement include breaks in seams between drywall panels, tilting chimneys, bulging walls, and exterior stairs that begin to tilt or sink. Some cracking in foundation walls is normal and expected with the passage of time, but when these cracks are wider at the top and narrow or nonexistent at the bottom, the soil beneath the foundation is likely settling at an uneven rate. You may see signs of vertical movement in the building's foundation, such as changes in the relative position of the foundation in relation to patios or concrete slabs edging the building.
Why is there uneven settlement of a foundation?
Uneven settlement of a foundation is always caused by some form of shifting of the soil beneath the foundation, but this shifting can take place for several reasons.
Why does soil shrink after foundation settlement?
This situation is more common with shallow foundations than with basement-level foundations that extend down many feet. When foundation settlement begins to occur several decades after construction, the soil has likely shrunk because large trees are drying out the soil.
What Causes Differential Settlement?
The main cause of differential settlement is the expansion and contraction of the soil beneath the foundation. The main reasons for this movement are:
How long does it take for a settlement to occur?
This can occur after 2 to 3 years from the completion of the building. Uniform settlement does not bring any severe issue to the building.

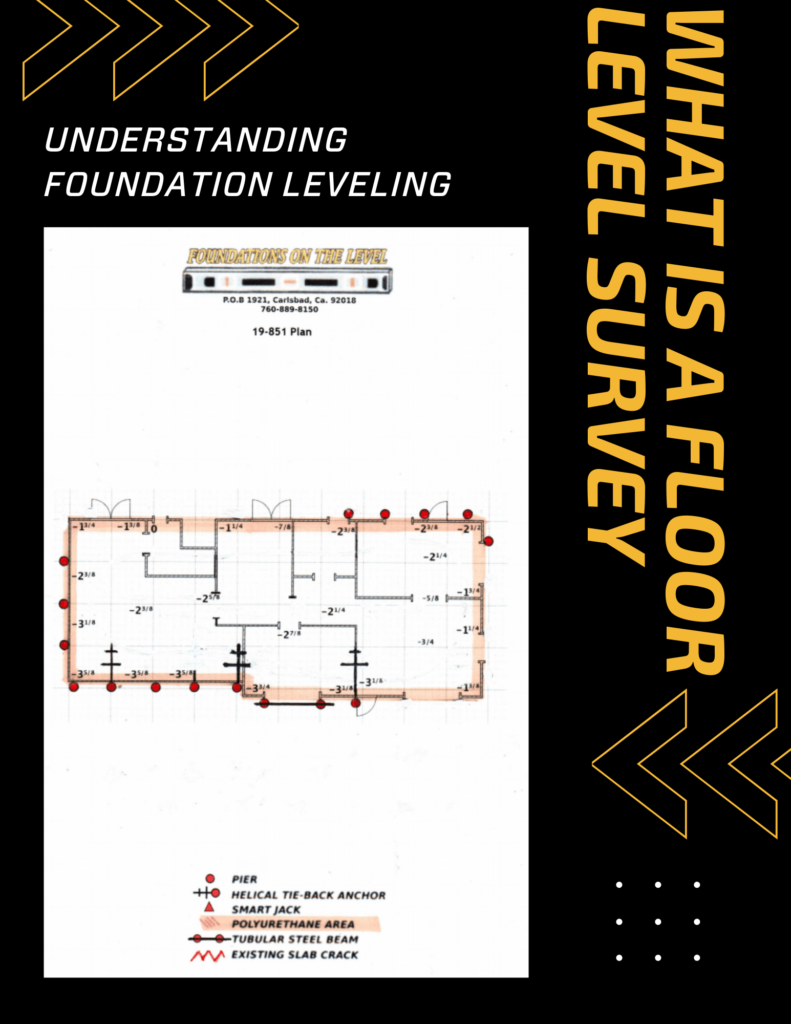

What does difference of elevation/settlement of two adjacent columns in a structure give?
The difference of elevation/settlement of two adjacent columns in a structure will give the value of the differential settlement. The difference of elevation across the boundary of the structure can also give a value for differential settlement if there exists any non-uniformity.
Is differential settlement necessary?
Prevention of Differential Settlement. Its not necessary that the differenti al settlement will leave behind a symptom. So its necessary to evaluate the site with utmost accuracy and care. If the site is made of clayey or expansive or contracting soils, a resistance or helical pier system will be the best choice.
Does differential settlement leave a symptom?
Its not necessary that the differential settlement will leave behind a symptom. So its necessary to evaluate the site with utmost accuracy and care. If the site is made of clayey or expansive or contracting soils, a resistance or helical pier system will be the best choice.
What is differential settlement?
Differential settlement describes the difference in settlement between two points in the same foundation or building. Total settlement is often not much of a problem as long as the whole building settles at the same rate. Differential settlement of the foundation however can be much more damaging to the buildings structure as this imposes new stresses on the buildings structure and facade.

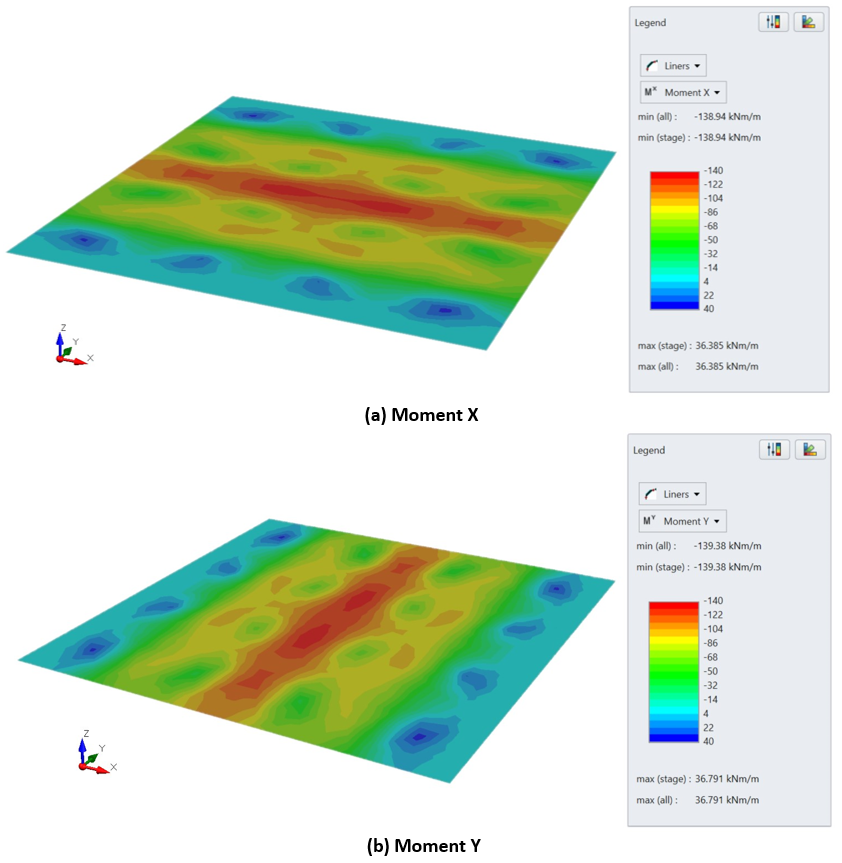

How does differential settlement affect a building?
Differential settlement of the foundation however can be much more damaging to the buildings structure as this imposes new stresses on the buildings structure and facade. Differential settlement can lead to unsightly cracking in minor cases and even structural damage or collapse in extreme instances.
Why do some parts settle more than others?
The most common cause is when there are variable ground conditions underneath the building, leading to some parts settling more than others. Where this is the case the differential settlement can be estimated by calculating the total settlement for each part of the structure and comparing.
What is the maximum differential settlement of a brick wall?
For maximum angular distortion of 1/300 (δ/L), in a frame building cracking in brick panels or in brick wall of load bearing building will occur at maximum differential settlement (Δ) of 32 mm (1.25 inches).
What is settlement governed by?
Coduto also interestingly concluded settlement that in most case structures, particularly buildings, settlement is governed by serviceability and aesthetic requirements not by structura l. Visual hazard like jamming doors-windows, cracks and other identical problems appears first long before structural integrity is hampered.
What factors affect foundation damage?
In determining severity of foundation damage of an existing building, the category may be influenced by many factors which include crack width, maximum distortion and differential settlement. When basis of damage category is only single parameter like width of cracks, it may be erroneous as there may have patch or hidden cracks or when secondary or non-relevant factors like shrinkage cracking results opening of cracks. As an example, cracks in walls may be even not noticed under wall paper, which is only visible when crack reappear after additional foundation settlement.
What is allowable settlement?
Allowable settlement: The settlement of a foundation that is acceptable both structural and esthetic point of view is called allowable settlement which generally includes a rational factor of safety. As esthetic issue is considered to set acceptable settlement, architect often take part in determining allowable settlement.
What are the limiting values of angular distortion to open cracks?
The limiting values of angular distortion to open cracks (1/150 and 1/300) mentioned above were provided based on observation of load bearing structure and reinforced concrete and steel frame buildings have traditional brick panels as partition or peripheral walls, but not having diagonal bracing. These criteria can be taken as mere guide for regular construction work of typical foundation of such buildings; but in some cases suppressed by aesthetic or for other considerations.
What is the maximum settlement value for a chimney?
For structures supported on load bearing wall, the maximum settlement values are (2.5-5) cm. for chimneys, silos, mats this value lies in between (8-30) cm, for framed structure (5-10) cm. All type of structures discussed above may be subjected to non-uniform settlement.
What type of construction has more tolerance for settlement?
Construction Type: Different types of construction have different level of tolerance against settlement. For example, buildings having wood frame including wood siding will have more tolerance than unreinforced masonry buildings.
