Components of Settlement:
- 1. Immediate Settlement Immediate settlement takes place as the load is applied or within a time period of about 7 days. Predominates in cohesion less soils and unsaturated clay ...
- 2. Consolidation Settlement (ΔHc) Consolidation settlements are time dependent and take months to years to develop. ...
- 3. Secondary Settlement/Creep (ΔHc)
What are the components of settlement of a foundation?
The components of settlement of a foundation are: Immediate settlement Consolidation Settlement, and Secondary compression (creep)
What is different settlement in construction?
Different settlement – The differential settlement happens when the structure is built on soil, containing different layers. Different structure portions may settle down differently, and cracks appear on different elements of the structure, which leads to a collapse of the entire structure.
What is total settlement in civil engineering?
Of a foundation, the total settlement is a combination of immediate settlement, consolidation settlement, and secondary consolidation settlement/ secondary compression. It is also known as elastic settlement that occurs immediately or within a week of application of the load.
What is primary settlement and secondary settlement?
Primary settlement frequently occurs in saturated inorganic fine grain soil. Expulsion of water from pores of saturated fine grain soil is the cause of primary settlement. Secondary settlement is the consolidation of soil under constant effective stress.
What are the different causes of settlement?
The following briefly describes a few of the more common causes of foundation settlement:1-Weak Bearing Soils.2-Poor Compaction.3-Changes in Moisture Content.4-Maturing Trees and Vegetation.5-Soil Consolidation.Foundation Underpinning and Piering.Foundation Push Piers.Push Pier Advantages:More items...
What is the settlement of soil?
Settlement is the downward movement of the ground (soil) when a load is applied to it. The load increases the vertical effective stress exerted onto the soil. This stress, in turn, increases the vertical strain in the soil. This increase in vertical strain causes the ground to move downward.
What are the different types of settlement in soil?
There are three main types of soil settlement in geotechnical engineering: Uniform settlement. Differential settlement. Curvature settlement.
What is total settlement and differential settlement?
Total settlement refers to the overall change in vertical distance. Differential settlement involves an expected amount that the total settlement will vary between points over a horizontal distance, which can be caused by variations in the foundation soil profile and wall height over a certain distance.
What are the types of settlement?
The four main types of settlements are urban, rural, compact, and dispersed. Urban settlements are densely populated and are mostly non-agricultural. They are known as cities or metropolises and are the most populated type of settlement. These settlements take up the most land, resources, and services.
What are the three main types of settlement patterns?

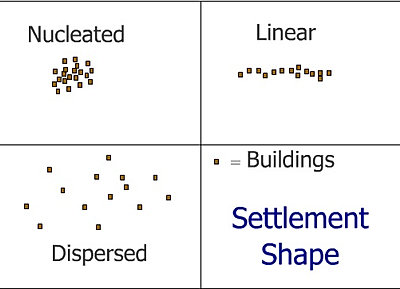

There are three main settlement patterns: nucleated, linear and dispersed.
Why settlement of soil is important?
Settlement is an important criterion in the design of the foundations. Foundation settlement must be estimated carefully to ensure stability of buildings, towers, bridges, and any high cost structures. The main reason for the settlement occurrence is the compressive deformation of the soil.
What are the main factors for the foundation settlement?
There are three common changes in soil that are causes of foundation settlement.DRYING AND SHRINKING OF SOIL.WETTING AND SOFTENING OF SOIL.COMPRESSION OF POORLY COMPACTED FILL SOIL.
How is settlement measured?
To calculate settlement amounts, you must have a reliable total of expenses incurred as a result of the dispute....Look at your actual damages.Actual damages also may be referred to as economic damages, or as special damages. ... Typically, this amount will represent the lowest number of your settlement range.More items...•
What is maximum settlement?
The maximum permissible settlement as per IS-1904(1966) for isolated foundations are 40mm on sandy soil and 65mm in clayey soils. The permissible settlement for the raft foundation on clay soil is 65-100 mm and for sandy soil, it is 65 mm. Differential settlement: Foundation on clay soil = 40 mm.
What is initial settlement?
Initial Settlement Statement means the first iteration of a Settlement Statement issued for a particular Operating Day. Initial Settlement Statement means the first iteration of a settlement statement issued for a particular operating day.
What is settlement analysis?
Soils consolidate under the application of loads from buildings. All foundations settle as the soil around and beneath the foundation adjust to the loading. Buildings with light loads or built on rock may experience negligible settlement.
How do you determine soil settlement?
To find secondary consolidation settlement in the field (ΔHs), H = Thickness of the field consolidating stratum at the end of primary consolidation. Commonly initial thickness is used unless the primary consolidation is very large. Say more than 10% of initial thickness.
How long is soil settlement?
If left dry, clay and silt will settle rather quickly, i.e., 1-2 years. If they come in contact with water, they can settle in just a few months. However, we don't recommend using these soils around your foundation for structures or your lawn.
What are the basic components of soil settlement?
The total settlement of the ground consists of 3 components: immediate settlement (commonly referred to as elastic settlement, although this is a misnomer), consolidation settlement (or primary settlement) and creep settlement (or secondary settlement).
What is elastic settlement of soil?
Elastic settlement is immediate and much higher in sandy soils than in clay soils. Due to the high Young's modulus values in clay, elastic settlement is low in clay soils. This chapter explains the computation of elastic settlement from elastic modulus vs. SPT (N) Values.
What is foundation settlement?
Inevitably, soils deform under the load of foundation structures. The total vertical displacement that occur at foundation level is termed as settlement. The cause of foundation settlement is the reduction of volume air void ratio in the soil. Moreover, the magnitude of foundation settlement is controlled by many factors type of soil and foundation structure. Foundations on bedrock settle a negligible amount. In contrary, Foundations in other types of soil such as clay may settle much more. An example of this is Mexico City palace of fine arts has settled more than 15 feet (4.5m) into the clay soil on which it is founded since it was constructed in the early 1930s. However, building foundation settlement is normally limited to amounts measured in millimeter or fractions of an inch. Structures will suffer damages due to settlement of its foundation specifically when the settlement occur in quick manner. In this article, different types of foundation settlement along with their cases and expected effects on the structure will be discussed.
What is the most probable type of settlement?
If all parts of a building rest on the same kind of soil, then uniform settlement the most probable type to take place.
Where does immediate settlement take place?
Immediate settlement take place mostly in coarse grained soils of high permeability and in unsaturated fine-grained soils of low permeability.
How long does primary settlement take?
It also termed as primary consolidation. Take place over long period of time that ranges from 1 to 5 years or more. Primary settlement frequently occurs in saturated inorganic fine grain soil. Expulsion of water from pores of saturated fine grain soil is the cause of primary settlement.
What is differential settlement?
Differential settlement occurs if there is difference in soils, loads, or structural systems between parts of a building. in this case, different parts of the building structure could settle by substantially different amounts. Consequently, the frame of the building may become distorted, floors may slope, walls and glass may crack, ...
How many feet of soil did the Mexico City Palace of Fine Arts settle into?
An example of this is Mexico City palace of fine arts has settled more than 15 feet (4.5m) into the clay soil on which it is founded since it was constructed in the early 1930s. However, building foundation settlement is normally limited to amounts measured in millimeter or fractions of an inch.
What happens when a building is distorted?
Consequently, the frame of the building may become distorted, floors may slope, walls and glass may crack, and doors and windows may not work properly.
What is settlement?
The vertical displacement of the structural foundation due to the loading from the superstructure is known as settlement. It is due to the reduction of air voids present in the soil. The amount of vertical displacement depends on the bearing capacity of the soil on which the foundation is laid.
Components of settlement
Of a foundation, the total settlement is a combination of immediate settlement, consolidation settlement, and secondary consolidation settlement/ secondary compression.
Types of settlement
It is also known as elastic settlement that occurs immediately or within a week of application of the load. In partially saturated soil, the expulsion of pore air leads to the elastic settlement of soil solids. In saturated soils, the elastic compression of soil solids and pore water leads to elastic settlement.
Settlement of piles
The total settlement of piles due to the application of load is a combination of settlement of pile shaft, settlement of pile caused by the applied load at pile point, and settlement of the pile caused by the applied load transmitted along the pile shaft.
What is the difference between total settlement and differential settlement?
Total settlement is the magnitude of downward movement. Differential settlement is non-uniform settlement. It is "the difference of settlement between various locations of the structure. Angular distortion between two points under a structure is equal, to the differential settlement between the points divided by the distance between them.
What is the final settlement of a foundation?
Generally, the final settlement of a foundation is of interest and U is considered equal to 1 (i.e. 100% consolidation) 1. Immediate Settlement. Immediate settlement takes place as the load is applied or within a time period of about 7 days. Predominates in cohesion less soils and unsaturated clay.
Why is the leaning tower of Pisa undergoing consolidation settlement?
The lean is caused by consolidation settlement being greater on one side. This, however, is an extreme case. The principal settlements for most projects occur in 3 to 10 years.
How much settlement is acceptable for a road embankment?
A fixed-end arch would suffer greatly if the abutments settle or rotate. For road embankments, storage silos and tanks a settlement of 300mm - 600mm may be acceptable, but for machine foundations the settlement may be limited to 5mm 30mm. Different types of construction materials can withstand different degrees of distortion. For example, sheet metal wall panels do not show distress as readily as brick masonry.
What is the value of m in a settlement?
m = number of corners contributing to settlement ΔHi. At the footing center m= 4; and at a corner m = 1, at a side m = 2.
Is soil settlement a good estimate of deformation?
Except for occasional happy coincidences, soil settlement computations are only best estimates of the deformation to expect when a load is applied.
Does a settlement do damage?
Theoretically, no damage will be done to a structure if it settles uniformly as a whole regardless of how large the settlement may be. The only damage would be to the connections of the underground utility lines. However, when the settlement is non-uniform (differential), as is always the case, damage may be caused to the structure.
What is meant by settlement of foundation?
After some time, you could see your footprints on the ground. How? Because you applied a force on the soil, which makes it compress and displaced it, making a dent.
What is uniform settlement?
Uniform Settlement – The whole structure settled at a uniform rate without cracks is called uniform settlement. It happens when the structure is located at the same layer of soil up to foundation depth, and it does not have any major impact on the structure. Tipping Settlement – When one portion of the structure settles down to a certain depth is ...
What causes foundations to settle?
Causes of foundation settlement 1 Due to the leakage of sewage water. 2 Inadequate bearing capacity of the soil. 3 Improper compaction or consolidation. 4 More vegetation root depth near to the foundation. 5 External vibration occurrence near to the foundation. 6 When major excavation happens near to the foundation. 7 The structure will settle down in case of seepage occurrence . 8 When the structural elements are built at different depths of foundation. 9 When the foundation is not constructed at a minimum depth of foundation . 10 When the structure was built on loose soil without proper type of foundation.
Why does a foundation settle down?
Causes of foundation settlement. The structure may settle down due to the following reasons, Due to the leakage of sewage water. Inadequate bearing capacity of the soil. Improper compaction or consolidation. More vegetation root depth near to the foundation. External vibration occurrence near to the foundation.
How long does it take for a building to settle?
Primary settlement – Primary settlement happens slowly at the period of 2 to 5 years after completion of construction activity. Secondary settlement – It happens in the total life span of the structure and creates severe effects.
What happens when a structure is built on soil?
It may lead to cracks in the construction and induce the collapse of the entire structure. Different settlement – The differential settlement happens when the structure is built on soil, containing different layers. Different structure portions may settle down differently, and cracks appear on different elements of the structure, ...
