What are the causes of foundation settlement?
Why Does Foundation Settlement Occur?
- Expansive Soil. A foundation built on expansive soils often faces the settlement issue. ...
- Non-compacted soil. The foundation built on the non-compacted ground is always a threat to the safety of the structure. ...
- Change in Moisture Content of Soil. ...
- Consolidation – Immediate, Primary & Secondary. ...
- Low Safe Bearing Capacity of Soil. ...
- Trees & Vegetation. ...
What are the types of foundation settlement?
Types of Foundation Settlement . Foundation settlement is classified into three main categories: Uniform Settlement: Sometimes a building or structure settles at a uniform rate without the formation of cracks. This type of settlement occurs when the structure is built on the same layer of soil up to foundation depth and does not have any major ...
How serious is foundation settlement?
Foundation settlement is a serious problem often encountered in structures. If not corrected at right time the entire structure may collapse. So, in this article, we will discuss the various causes of foundation settlement, types of foundation settlement such as uniform, tipping and differential settlement, and its prevention and correction methods.
How to fix foundation settlement?
These products are manufactured by Earth Contact Products (ECP):
- Steel Push Piers – This is a permanent solution for fixing foundation settlement due to soil shrinkage and erosion.
- Helical Piers – These piers are used to repair and stabilize foundations.
- Plate Anchors – Anchors generate support for cracked or bowed basement walls.
- Hydraulic Lift Slab Pier – These piers are specifically used to lift concrete slabs.
What does settlement in foundation mean?
What is Foundation Settlement? Foundation settlement happens when soil shifts beneath a home and it is a serious deal for a homeowner, and often requires that swift action be taken to prevent structural damage from occurring to the home.
Why do foundations settle?
Foundation Settlement is due primarily to the expanding soil cycle (shrinkage and expansion) directly dependent on water content. This constant movement weakens and softens soils and can also create pockets/voids beneath your home's foundation, which your home will sink/settle into following the laws of gravity.
What happens foundation settlement?
When a house applies pressure to the soil beneath it, a lot of things can go wrong if too much settlement occurs. Foundations, walls, floors, and even ceilings can crack as the weight of the house twists and warps concrete and wooden boards alike.
How many types of foundation settlements are there?
The settlement in the foundation can be classified into two types namely the uniform foundation settlement and the differential foundation settlement.
How long does it take for a new foundation to settle?
Usually, if you live in a suitable environment and have a solid foundation, the amount of settlement and movement will be limited. Generally, it might take around two years internally before the building stabilizes. In most cases, a house should finish “settling” after a year.
How do I find my foundation settlement?
Finding cracks in the drywall throughout your house is usually the most reliable indicator of foundation settlement. Cracks are often larger and more obvious in the home's upper levels, at the corners of doors and windows or along drywall seams.
How can I fix my foundation settlement?
When a foundation is settling, it can be fixed by enlisting a company to lift the foundation and make it level again. To do this, the crew must excavate under the specific areas of your house that are sinking. Then they place piers (sometimes called pilings) directly under the foundation.
What does settlement in a building mean?
Introduction. Settlement is the downward movement of the ground caused by a load consolidating the soil below it or causing displacement of the soil. Settlement often refers to the downward movement of the ground around an excavated space, such as that for tunnels, shafts, or basements.
Is it normal to have cracks in foundation?
Are foundation cracks normal? Yes, and they usually are no reason to panic. In fact, most cracks in a poured concrete foundation are a natural result of foundation settlement and shrinkage of the concrete during the curing process and can be easily fixed or simply left alone.
What are the types of settlement?
The four main types of settlements are urban, rural, compact, and dispersed. Urban settlements are densely populated and are mostly non-agricultural. They are known as cities or metropolises and are the most populated type of settlement. These settlements take up the most land, resources, and services.
What are the two types of foundation settlement?
There are two types of foundation settlement: uniform settlement and differential settlement.
What are the components of settlement of foundation?
The three components of geotechnical settlement Immediate settlement (also known as elastic settlement) Consolidation settlement (or primary settlement) Creep settlement (or secondary settlement).
How do you fix a settling foundation?
When a foundation is settling, it can be fixed by enlisting a company to lift the foundation and make it level again. To do this, the crew must excavate under the specific areas of your house that are sinking. Then they place piers (sometimes called pilings) directly under the foundation.
How serious is foundation settling?
The Difference Between Foundational Settling and Problems That said, standard settling is nothing to worry about and often won't have too much of an impact on the foundation and structure of a building. With soil expansion and contraction, it is normal for a part of a building to move a few inches.
How do I stop foundation settlement?
How to Prevent Foundation Damage so You can Save Time and MoneyClean Gutters and Spouts. ... Gently Sloped Landscaping. ... Install Drains Where Needed. ... Smarten Your Sprinkler System. ... Keep Root Plants Away From the House. ... Low-Water Flowers Near the Foundation. ... A Few Inches of Mulch. ... Repair Cracks Immediately.
What causes settlement in construction?
Settlement occurs from soil consolidation due to a reduction in voids or spaces between soil particles due to applied loads or changes in moisture content. The loss of moisture in soils causes consolidation.
What is foundation settlement?
Inevitably, soils deform under the load of foundation structures. The total vertical displacement that occur at foundation level is termed as settlement. The cause of foundation settlement is the reduction of volume air void ratio in the soil. Moreover, the magnitude of foundation settlement is controlled by many factors type of soil and foundation structure. Foundations on bedrock settle a negligible amount. In contrary, Foundations in other types of soil such as clay may settle much more. An example of this is Mexico City palace of fine arts has settled more than 15 feet (4.5m) into the clay soil on which it is founded since it was constructed in the early 1930s. However, building foundation settlement is normally limited to amounts measured in millimeter or fractions of an inch. Structures will suffer damages due to settlement of its foundation specifically when the settlement occur in quick manner. In this article, different types of foundation settlement along with their cases and expected effects on the structure will be discussed.
Where does immediate settlement take place?
Immediate settlement take place mostly in coarse grained soils of high permeability and in unsaturated fine-grained soils of low permeability.
How long does primary settlement take?
It also termed as primary consolidation. Take place over long period of time that ranges from 1 to 5 years or more. Primary settlement frequently occurs in saturated inorganic fine grain soil. Expulsion of water from pores of saturated fine grain soil is the cause of primary settlement.
What is the most probable type of settlement?
If all parts of a building rest on the same kind of soil, then uniform settlement the most probable type to take place.
What is differential settlement?
Differential settlement occurs if there is difference in soils, loads, or structural systems between parts of a building. in this case, different parts of the building structure could settle by substantially different amounts. Consequently, the frame of the building may become distorted, floors may slope, walls and glass may crack, ...
How many feet of soil did the Mexico City Palace of Fine Arts settle into?
An example of this is Mexico City palace of fine arts has settled more than 15 feet (4.5m) into the clay soil on which it is founded since it was constructed in the early 1930s. However, building foundation settlement is normally limited to amounts measured in millimeter or fractions of an inch.
What happens when a building is distorted?
Consequently, the frame of the building may become distorted, floors may slope, walls and glass may crack, and doors and windows may not work properly.
What is meant by settlement of foundation?
After some time, you could see your footprints on the ground. How? Because you applied a force on the soil, which makes it compress and displaced it, making a dent.
What causes foundations to settle?
Causes of foundation settlement 1 Due to the leakage of sewage water. 2 Inadequate bearing capacity of the soil. 3 Improper compaction or consolidation. 4 More vegetation root depth near to the foundation. 5 External vibration occurrence near to the foundation. 6 When major excavation happens near to the foundation. 7 The structure will settle down in case of seepage occurrence . 8 When the structural elements are built at different depths of foundation. 9 When the foundation is not constructed at a minimum depth of foundation . 10 When the structure was built on loose soil without proper type of foundation.
What is uniform settlement?
Uniform Settlement – The whole structure settled at a uniform rate without cracks is called uniform settlement. It happens when the structure is located at the same layer of soil up to foundation depth, and it does not have any major impact on the structure. Tipping Settlement – When one portion of the structure settles down to a certain depth is ...
What happens when a structure is built on soil?
It may lead to cracks in the construction and induce the collapse of the entire structure. Different settlement – The differential settlement happens when the structure is built on soil, containing different layers. Different structure portions may settle down differently, and cracks appear on different elements of the structure, ...
Why does a foundation settle down?
Causes of foundation settlement. The structure may settle down due to the following reasons, Due to the leakage of sewage water. Inadequate bearing capacity of the soil. Improper compaction or consolidation. More vegetation root depth near to the foundation. External vibration occurrence near to the foundation.
How long does it take for a building to settle?
Primary settlement – Primary settlement happens slowly at the period of 2 to 5 years after completion of construction activity. Secondary settlement – It happens in the total life span of the structure and creates severe effects.
When should soil investigation be done?
Proper soil investigation has to be done before starting the construction work.
What Is Foundation Settlement?
This is the gradual sinking of a house into the ground over time. It occurs when the soil under your foundation expands, contracts, or shifts, creating voids or air pockets.
Signs of Foundation Settlement
Keep an eye out for some of these common problem signs throughout your home that can indicate foundation settlement.
How to Fix Foundation Settlement
The first step to fixing a settling foundation is by contacting a local foundation repair contractor. One of their highly trained inspectors will assess your foundation and the extent of settling and recommend a lasting fix.
Preventing Settlement
Unfortunately, all houses settle over time due to gravity. But there are a few measures you can take to prevent severe damage. Start by ensuring that your home has adequate drainage. This way, water will not build up around your foundation and cause the soil to swell.
What is Foundation Settlement?
Foundation Settlement is when a foundation sinks into the earth, compromising the building’s structural integrity. This is due primarily to gravity, climate, seismic activity, and the tick, tick, ticking of time.
Signs of Foundation Settlement
Common signs of foundation settlement include sticky doors, cracked drywall, sloping floors, and baseboards that pull away from the walls.
Soil and Weather
As we mentioned earlier, soil is the foundation for your foundation. Settlement is simply caused by soil displacement due to shifting.
Expansive Soil
A soil, such as clay, that easily absorbs water and consequently increases in volume.
Sandy Soil
A major culprit when it comes to foundation shifting, particularly for coastal regions.
Water-Related Issues
Here at Dalinghaus Construction, we believe in everything in moderation – water not excluded.
We Never Settle
Whether your foundation settlement is the result of soil creep or poor irrigation woes, we have the tools, training, and experience to meet your foundational needs.
What is Foundation Settling?
Settling is essentially the all-encompassing term used to describe the natural changes that take place in a foundation over the years. The two major culprits of foundation settling are time and weather.
What is the difference between initial settlement and ongoing settlement?
It should also be noted that there’s a difference between initial settlement and ongoing settlement due to site factors. Initial settlement happens within the first few years of construction – as mentioned above. Ongoing settlement due to site factors is continued settlement that’s related to site-specific issues. In other words, this is settlement that will likely continue over time and needs to be monitored and handled.
How do you know if your foundation is shifting?
However, if any of the following signs are present, then they could indicate a larger issue: Wall cracks. If you see jagged cracks running at 45-degree angles throughout your home, this is a telltale sign that your foundation is shifting. In fact, it’s shifting so much that the sheetrock is being torn apart.
How long does it take for a new home to settle?
If there’s been improper soil preparation or extreme weather conditions, it’s possible for brand new homes (less than five years old) to see substantial settlement. This generally happens when a home is built during a drought, and a rainy season occurs after construction is completed. The clay soil expands and the house experiences some settlement. Then, if another drought follows, the clay will retract and it’s possible to see a few inches of settlement in a matter of weeks or months.
What happens if you settle too much?
However, only a certain amount of settlement and movement should occur. If too much settlement happens, serious foundational problems could result .
Why do brick walls expand?
While all brick will expand, brick walls that are exposed above-grade are subject to more rapid size gains. Brick walls beneath the ground tend to grow because of moisture gain – especially in freezing climates.
How does a new home settle over time?
Over time, a new home gradually sinks into the ground, and a lot depends on the soil composition and climate. Good builders and contractors are familiar with the local soil and can accurately predict how much a foundation will settle over time, but there is no exact science.
What is settlement governed by?
Coduto also interestingly concluded settlement that in most case structures, particularly buildings, settlement is governed by serviceability and aesthetic requirements not by structura l. Visual hazard like jamming doors-windows, cracks and other identical problems appears first long before structural integrity is hampered.
What is allowable settlement?
Allowable settlement: The settlement of a foundation that is acceptable both structural and esthetic point of view is called allowable settlement which generally includes a rational factor of safety. As esthetic issue is considered to set acceptable settlement, architect often take part in determining allowable settlement.
What factors affect foundation damage?
In determining severity of foundation damage of an existing building, the category may be influenced by many factors which include crack width, maximum distortion and differential settlement. When basis of damage category is only single parameter like width of cracks, it may be erroneous as there may have patch or hidden cracks or when secondary or non-relevant factors like shrinkage cracking results opening of cracks. As an example, cracks in walls may be even not noticed under wall paper, which is only visible when crack reappear after additional foundation settlement.
What is the maximum differential settlement of a brick wall?
For maximum angular distortion of 1/300 (δ/L), in a frame building cracking in brick panels or in brick wall of load bearing building will occur at maximum differential settlement (Δ) of 32 mm (1.25 inches).
What is the maximum settlement value for a chimney?
For structures supported on load bearing wall, the maximum settlement values are (2.5-5) cm. for chimneys, silos, mats this value lies in between (8-30) cm, for framed structure (5-10) cm. All type of structures discussed above may be subjected to non-uniform settlement.
What type of construction has more tolerance for settlement?
Construction Type: Different types of construction have different level of tolerance against settlement. For example, buildings having wood frame including wood siding will have more tolerance than unreinforced masonry buildings.
Is a crack in a house considered a problem?
In dwelling house, even a tiny crack is considered unacceptable; on the other hand, in a structure used as warehouse, storage or industrial purposes, a large crack may be even not noticed.
Foundation Settlement Goes by Other Names
- Some industry people use foundation settlement, foundation problems, and foundation issues interchangeably (heck, we do it all the time!). Others say things like “cracked foundation” or “cracked slab” and just mean settlement. Even though people tend to throw all these terms arou…
There Is No “Normal” When It Comes to Foundation Settlement
- You might often hear people say, “Oh, that’s normal,” when it comes to foundation settlement. It’s not so much normal, but more like *not unusual* or *nothing to worry about.* A better term than normal would be “minimal” settlement. Think of a small (not really noticeable) crack that doesn’t get any larger over time. A door that doesn’t latch quite right at certain times of the year but get…
What Are The Different Types of Foundation Settlement?
- Yes, there are different types of foundation settlement or, to use a word that makes more sense, foundation movement. The seven settlement types are defined by either when or how the movement takes place, or by its severity. Here’s a list of them and we will go over each one in a bit more detail. 1. Initial 2. Seasonal 3. Uniform 4. Differential 5. Tipping 6. Acceptable 7. Unacce…
Control Foundation Settlement with Foundation Repair
- Whenever a home experiences too much damage or problems from foundation settlement, the homeowner might be ready for it to stop moving so much and causing issues. Foundation repair is the solution to your foundation movement problem. Anchor Foundation Repair has repaired thousands of home foundations in the Bryan, College Station, and Brazos Valley communities fo…
What Is Meant by Settlement of Foundation?
Types of Foundation Settlement

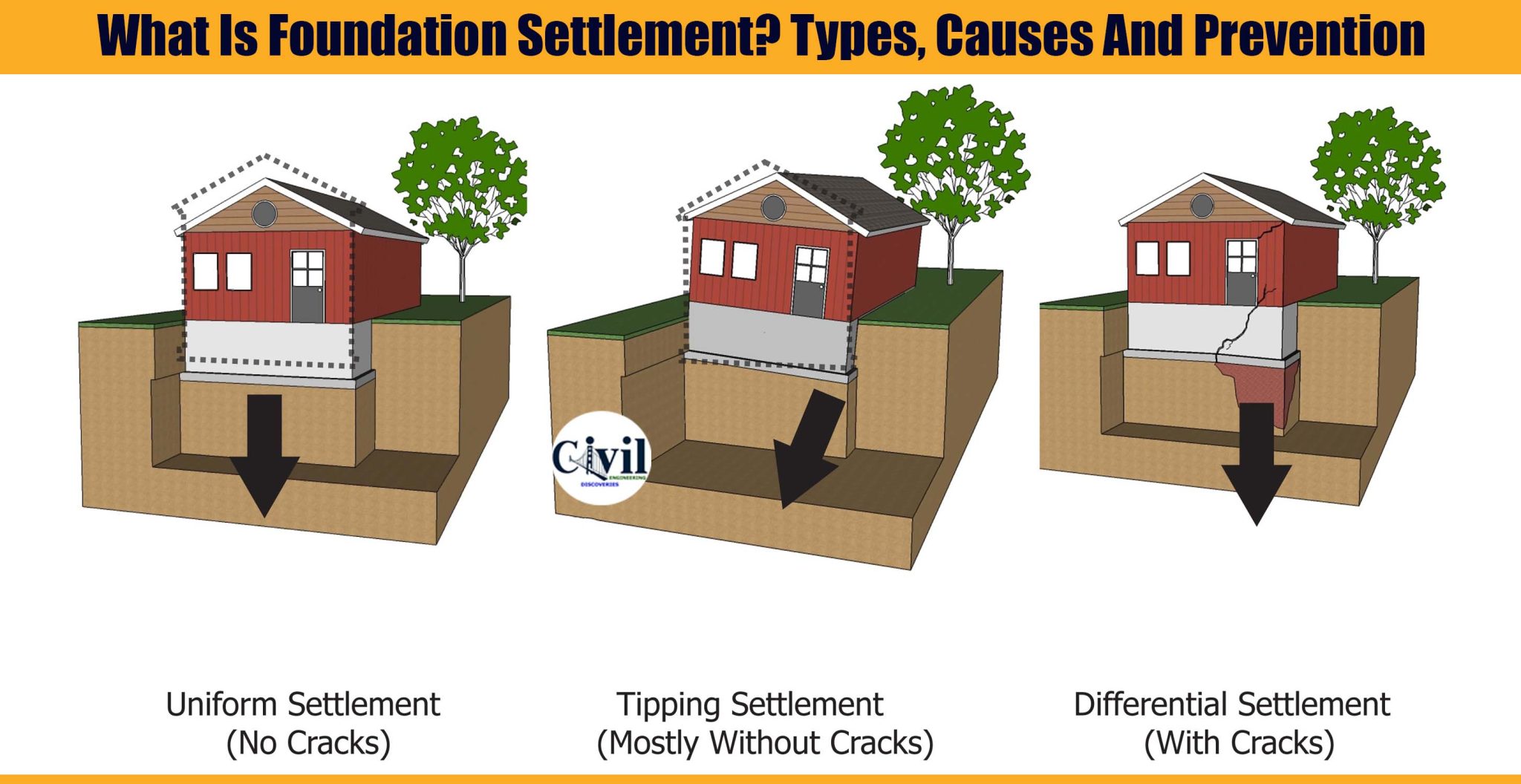

- The foundation settlements have been classified as below. 1. Uniform Settlement– The whole structure settled at a uniform rate without cracks is called uniform settlement. It happens when the structure is located at the same layer of soil up to foundation depth, and it does not have any major impact on the structure. 2. Tipping Settlement– When one...
Total Settlement of A Foundation
- The total vertical displacement (the combination of all settlement) happens at the foundation due to load occurrence is called a total settlement of the foundation. The specification and calculation of foundation settlement have been mentioned in IS code 8009 Part 1and Part 2. It is classified as, 1. Immediate settlementhappens immediately after a particular stage of construction work on co…
Causes of Foundation Settlement
- The structure may settle down due to the following reasons, 1. Due to the leakage of sewage water. 2. Inadequate bearing capacity of the soil. 3. Improper compaction or consolidation. 4. More vegetation root depth near to the foundation. 5. External vibration occurrence near to the foundation. 6. When major excavation happens near to the foundation. 7. The structure will settl…
Prevention
- Provide a minimum depth of foundation.
- Remove any tree roots passing beneath the foundation.
- Ensure proper compaction has been done on foundation depth.
- The right type of foundationhas to be chosen for construction.
Permissible Settlement of The Foundation
- The foundation settlement for different construction works has been mentioned below. Happy Learning 🙂
