What does linear mean in settlement patterns?
A linear settlement is a form of settlement where buildings are built along the river, a coastline or a road. It usually forms a long and narrow pattern, which can be maintained even when the population grows. Linear settlements are formed as a result of main transport networks, such as roads, railways and geographical restrictions.
What is total and differential settlement?
Total settlement refers to the overall change in vertical distance. Differential settlement involves an expected amount that the total settlement will vary between points over a horizontal distance, which can be caused by variations in the foundation soil profile and wall height over a certain distance.
What does differential in foundation mean?
Differential settlement is the term used in structural engineering for a condition in which a building's support foundation settles in an uneven fashion, often leading to structural damage.
How is differential settlement determined?
The most common cause is when there are variable ground conditions underneath the building, leading to some parts settling more than others. Where this is the case the differential settlement can be estimated by calculating the total settlement for each part of the structure and comparing.
How much differential settlement is acceptable?
The industry standard is 1 inch of differential settlement in 20 feet. Anything greater than this can be considered too much.
How do you deal with differential settlements?
2:173:46Differential Settlement. - Its Causes and How to Prevent it - YouTubeYouTubeStart of suggested clipEnd of suggested clip1 do proper geotechnical investigation of the soil. To study the surrounding environment 3 the soilMore1 do proper geotechnical investigation of the soil. To study the surrounding environment 3 the soil over which the building is constructed must not be expansive in nature.
Why does differential settlement cause problems in a building?
The main cause of the differential settlement and inclination of the Tower is the increased deformability and compressibility of the foundation soil in the area underneath the southern part of the Tower.
How can I lower my foundation settlement?
Compacting the soil. Draining the soil, in case of cohesive types. Compacting the soil, in case of cohesion less soils. Confining the soil, increasing stiffness.
What are the harmful effects of differential settlement?
doors and windows, sinking of chimneys, bulging walls and sunken slabs are often considered as the adverse effects of differential settlement and can be devastating to a building. These effects are a result of increased axial force, shear force and bending moments in the structure.
What is differential movement?
Definition of differential motion : a mechanism (such as a differential screw or a differential chain block) having two driving elements so arranged that the net motion of the follower is the difference between the two motions that it would have if either driver acted alone.
When should you walk away from foundation issues?
The most glaring issue has to deal with the foundation. When to walk away from foundation issues? Horizontal or diagonal cracks measuring more than 1/4 of an inch is a good reason to walk away.
How do you tell the difference between settling and foundation problems?
Foundation problems happen when the settling of your building is severe. This is beyond the typical settling that is natural for buildings. These problems make your building structurally unsound and dangerous. Foundation problems affect the stability and integrity of your building's foundation.
What is maximum settlement?
The maximum permissible settlement as per IS-1904(1966) for isolated foundations are 40mm on sandy soil and 65mm in clayey soils. The permissible settlement for the raft foundation on clay soil is 65-100 mm and for sandy soil, it is 65 mm. Differential settlement: Foundation on clay soil = 40 mm.
What is acceptable variation in the foundation?
Foundations walls should be level within 1/4 inch in 10 feet, while the entire foundation should be level within 1/2 inch. The Handbook states that there is no single accepted tolerance for rough framing, although a tolerance of 1/4 inch in 10 feet is frequently used and is acceptable.
How much foundation movement is acceptable?
The most common allowable are a tilt of 1% and a deflection of L/360. In other terms, a tilt of up to 1 inch in 100 inches and a deflection of 1 inch in a length of 360 inches are acceptable.
What is differential movement of structure?
Differential movement occurs when independent structural components are adjoined at different parts of the building. These conditions can occur in roof systems at flashings, penetrations, adjoining roof areas and mechanical penthouses.
What are the harmful effects of differential settlement?
doors and windows, sinking of chimneys, bulging walls and sunken slabs are often considered as the adverse effects of differential settlement and can be devastating to a building. These effects are a result of increased axial force, shear force and bending moments in the structure.
How to recognize the potential occurrence of differential settlements?
Leaving out extreme cases like the Leaning Tower of Pisa, the most common sign of differential settlements is the occurrence of cracks on the structure at an angle of 45˚ , usually around the openings (doors, windows). If there is a shift in the soil beneath the structure, or if one part of the structure has foundations on rock and another part on clay or embankment, the result is a change of the state of stress that is transmitted from the foundation to the structure, creating cracks in the walls.
What causes differential settlement and inclination of the Tower?
The main cause of the differential settlement and inclination of the Tower is the increased deformability and compressibility of the foundation soil in the area underneath the southern part of the Tower.
Why did the Leaning Tower of Pisa take two centuries to build?
Because Pisa is built on wetlands, with the geological profile of the soil consisting of clay and fine sand, and is characterized by a high level of groundwater, conditions for the construction of a tall structure have been challenging since the very beginning. The main cause of the differential settlement and inclination of the Tower is the increased deformability and compressibility of the foundation soil in the area underneath the southern part of the Tower. However, differential settlements can cause significant problems for other, lower structures as well, and it is necessary to be familiar with the potential causes in order to eliminate them or at least reduce their effect to an acceptable level.
Why is it important to keep differential settlements in mind when designing foundations?
Considering the possible causes of differential settlements and their impact on the overall stability of structures, it is necessary to keep them in mind when designing the foundation and landscaping, in order to reduce their effect to an acceptable level.
How to prevent differential settlements?
The best way to prevent potential differential settlements is to carry out adequate exploration and investigation works at the location where the structure is planned. By analyzing the results of these investigations, optimal solutions in terms of the type of foundation of the planned structure as well as the possible type of soil improvement can be obtained.
Why is Pisa a tall building?
Because Pisa is built on wetlands, with the geological profile of the soil consisting of clay and fine sand, and is characterized by a high level of groundwater, conditions for the construction of a tall structure have been challenging since the very beginning. The main cause of the differential settlement and inclination ...
What is the settlement of foundations?
Settlement of the foundation structures is a problem that people have faced ever since they first started constructing. The size of a foundation structure settlement is primarily dependent on the weight of the structure and the deformation characteristics of foundation soil. When analyzing this problem, it is necessary to distinguish between the concepts of uniform and differential settlements.
What is differential settlement?

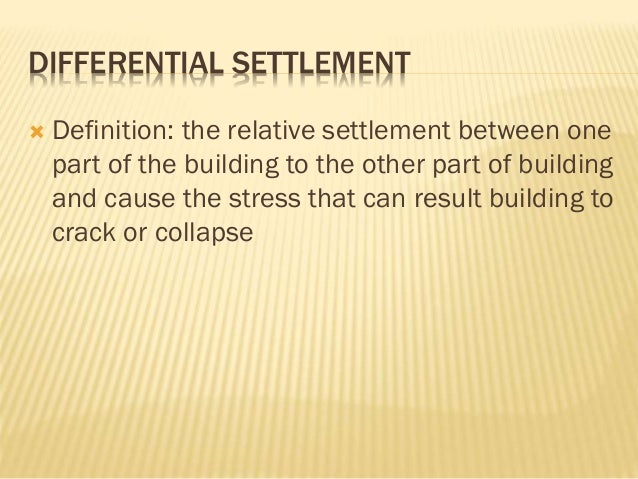

Differential settlement is the term used in structural engineering for a condition in which a building's support foundation settles in an uneven fashion, often leading to structural damage. All buildings settle somewhat in the years following construction, and this natural phenomenon generally causes no problems if ...

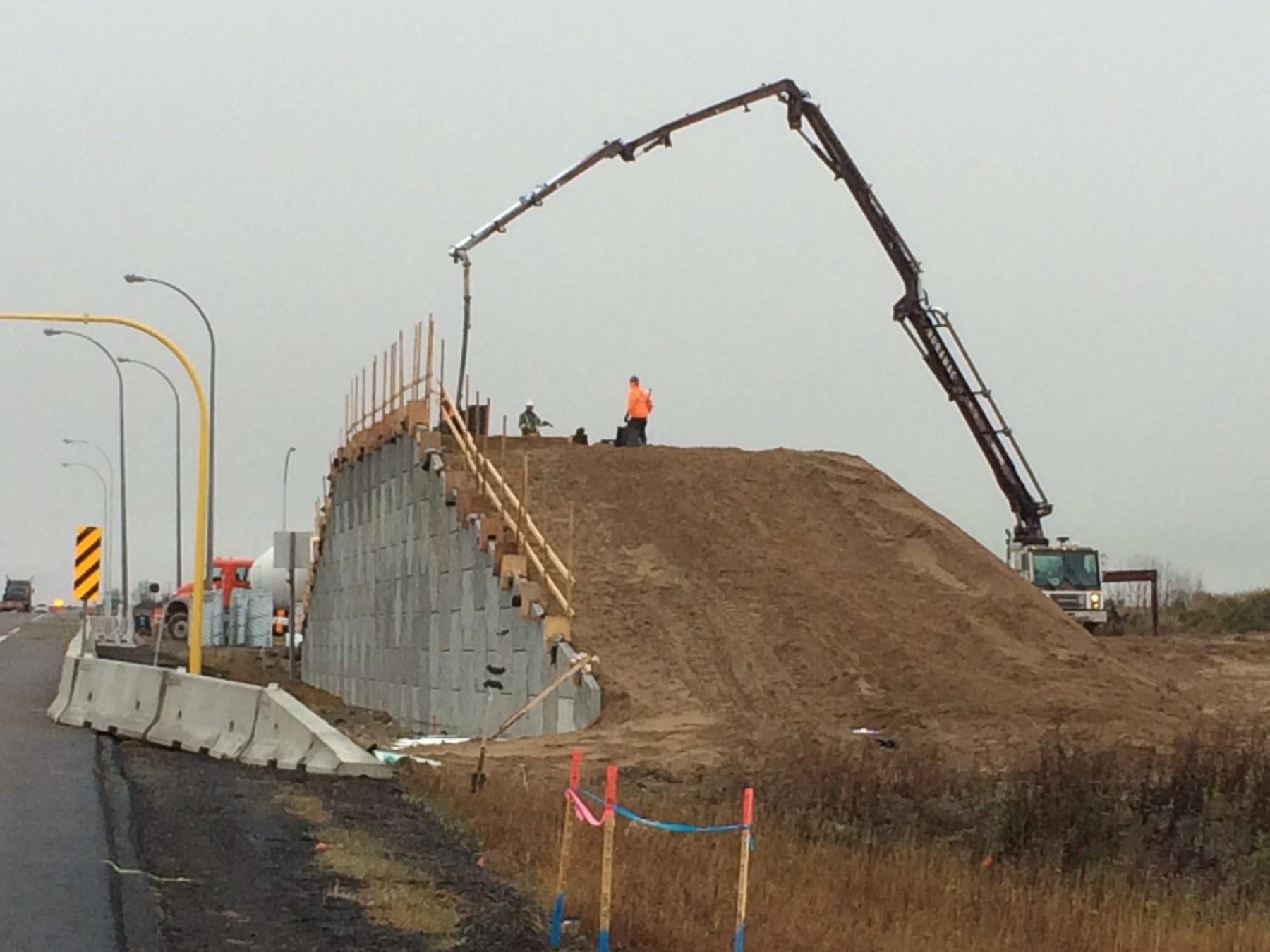

What is poorly compacted soil?
Poorly compacted soil. Building sites for commercial or residential structures often consist of land that has been artificially leveled and filled for ease of construction. When properly compacted, this fill soil can provide a perfectly solid base for supporting foundations, but when not compacted, the soil may settle and compress unevenly under the foundation, leading to structural damage.
Why does my foundation settle?
Soil that is either too dry or too wet can cause foundation settlement. When moisture builds up, soils saturate and lose their load-bearing capacity. Dry soils shrink in volume. Either situation can cause uneven settling of the foundation.
What causes soil moisture to shrink?
Trees and vegetation. Large trees, shrubs, and other vegetation planted along a building's foundation or close to it can gradually draw the moisture out of the soil and cause it to shrink.
What is uneven foundation settling?
Uneven foundation settling—differential settlement —is best prevented by careful analysis of the soil before a building foundation is constructed. The best soils for building foundations are nonexpansive —meaning that they contain little clay or silt content. Ideally, the building site will be native soil rather than a site artificially filled with outside soil.
How to tell if a foundation is differentially settled?
Other signs of differential settlement include breaks in seams between drywall panels, tilting chimneys, bulging walls, and exterior stairs that begin to tilt or sink. Some cracking in foundation walls is normal and expected with the passage of time, but when these cracks are wider at the top and narrow or nonexistent at the bottom, the soil beneath the foundation is likely settling at an uneven rate. You may see signs of vertical movement in the building's foundation, such as changes in the relative position of the foundation in relation to patios or concrete slabs edging the building.
Why is there uneven settlement of a foundation?
Uneven settlement of a foundation is always caused by some form of shifting of the soil beneath the foundation, but this shifting can take place for several reasons.
How do I Know If I Should Underpin?
Well it’s pretty simple: What are you willing to live with? If you’ve only got one inch of differential settlement and there are cracks in the brick veneer but none inside the home, and you understand that brick veneer is a very brittle material and only a “veneer”, and you can live with the cracks, then the answer is: you do nothing. Maybe point the cracks to make them less noticeable.
What further compounds the problem of differential settlement?
What further compounds the problem of Differential Settlement is the predominately massive clay soil that exists in this geologic setting. It is like a sponge. It imbibes water and swells in volume. It gives off water and shrinks in volume. Some soils do this “mildly” and some “severely.” These later soils are called expansive clays and they can play havoc on a home. Why? Because Huntsville has cold, rainy winters/springs and hot, dry summer/fall months. If your footing is only located 12-inches beneath the ground surface, and the subsoil dries or desiccates to a depth of four feet; for example, during an extended drought, the footing is going to move downward in proportion to the depth of drying. All of the continuous rebar in the footing is not going to stop this!
What is the problem with bedrock?
The Bedrock Problem. When bedrock intercepts footing trenches, as in photo above, the bedrock is incorporated into the foundation, which can lead to possible future differential settlement. In some geologic settings, such as the mountainsides of Huntsville, it is sometimes impossible to dig through the soil to cast a trench footing because ...
What is differential settlement?
Differential Settlement can be simply defined as “unequal settling of a building’s foundation.”. Differential Settlement can result in damage to a building, leaving small and/or large gaping cracks in exterior brick veneer and concrete blocks.
Does soil settle over time?
The soil will naturally give and settle under the weight of the home over time, whereas the rock provides unyielding support. Over a prolonged period of time Differential Settlement will likely occur, as the portion of the foundation supported by soil gives way and the portion supported by bedrock stays stationary.
What is differential settlement?
This type of settlement can result in cracking to the foundation, exterior cladding, and interior finishes. Additionally, with a pier and beam foundation system, each individual pier may settle at a different rate, which is different than the settlement that would occur to a slab foundation.
What is Settlement?

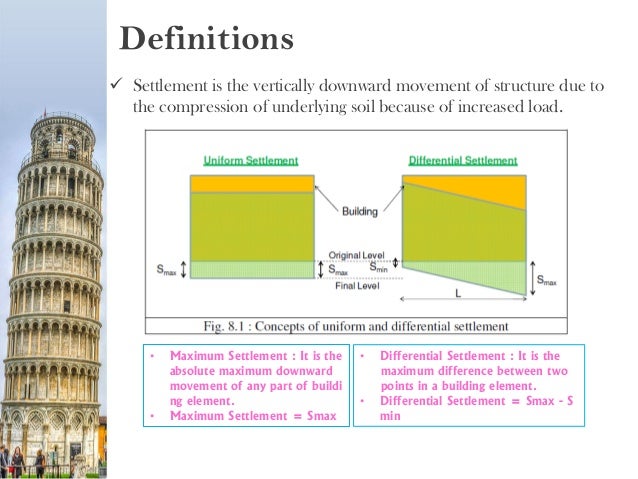

Settlement is the downward movement of the ground (soil) when a load is applied to it. The load increases the vertical effective stress exerted onto the soil. This stress, in turn, increases the vertical strain in the soil. This increase in vertical strain causes the ground to move downward. In fact, most buildings settle over time. However, most building settlement occurs during the first few years after construction, unless there are changes in the drainage patterns around the building, severe changes in weather, or other external factors. Ongoing building settlement is uncommon.
What Causes Settlement of Soils?
Settlement occurs from soil consolidation due to a reduction in voids or spaces between soil particles due to applied loads or changes in moisture content. The loss of moisture in soils causes consolidation. As the moisture takes up volume in the soil, and when the moisture is expelled, the soil loses volume and consolidates. In the opposite circumstance, when there is a buildup of moisture in the soils, smaller clays and silts, which were previously used to fill the voids between larger soil types and provide additional structural support, will drain downwards in the ground when the moisture eventually subsides. This will cause the supporting soil to lose its load-bearing capabilities.
How to level a slab that has settled?
Slabs that have settled can be leveled by the use of mudjacking or polyurethane foam. Mudjacking is the use of flowable concrete or grout and polyurethane foam is a closed cell foam. In both uses, holes are drilled in the settled slab and the flowable fill is pumped through. The pressure exerted through the pumping process raises the slab as well as consolidating the soil to prevent future settlement. Polyurethane foam is typically more expensive than mudjacking; however, it is typically stronger, has a longer life span, will not retain moisture, and the slab can be utilized sooner.
How does settlement occur?
Settlement occurs from soil consolidation due to a reduction in voids or spaces between soil particles due to applied loads or changes in moisture content. The loss of moisture in soils causes consolidation. As the moisture takes up volume in the soil, and when the moisture is expelled, the soil loses volume and consolidates.
What is Vertex looking for?
VERTEX is looking for talented individuals to join a highly technical team of forensic consultants, design engineers, construction managers, and environmental scientists.
When does a building settle?
In fact, most buildings settle over time. However, most building settlement occurs during the first few years after construction, unless there are changes in the drainage patterns around the building, severe changes in weather, or other external factors. Ongoing building settlement is uncommon.
What Is Differential Settlement?
While the term differential settlement is a structural engineering term, we’re not going to use engineering language for the sake of clarity. Essentially, the term differential settlement is another way of saying the levelness of a building’s foundation.
What Causes It?
Typically, soil is the underlying cause, literally, for most uneven foundation issues. In some scenarios, the soil was never compacted properly during construction. More commonly, the soil shifted, expanded, or contracted at some point after construction, which causes the foundation to shift.
Is There Anything I Can Do About It?
Yes! Now, in really serious scenarios, you might need a structural engineer. A lot of homeowners can get by with concrete underpinning, jet grouting, filling cracks, and reducing moisture. In other words, you need to reduce any possibility of your foundation shifting with cosmetic repairs.
About the Author: Austin Werner
Austin Werner is the Owner of The Real Seal LLC, a basement waterproofing and foundation repair company. Austin believes that having a highly trained and happy team is the key to success. This is reflected through hundreds of 5 star customer reviews his company has received online.
What causes differential settlement?
This can be caused by drought conditions, the root systems of maturing trees, flooding, poor drainage, frost, broken water lines, vibrations from nearby construction or poorly compacted fill soil.
Is it normal to settle after a building is built?
After a building has been constructed, some settlement is quite normal . Differential settlement, however, is when a building’s piers or foundation settles unequally. Differential settlement can result in damage to the structure, and is therefore, of concern.
