Is your house settling?
- Slanted mortar joints. The best and easiest way to spot foundation settlement is to measure off of mortar joints. ...
- Visible cracks. Erickson Construction Co. Visible cracks on the interior or exterior of the home are also clear signs.
- Suspicious patches and repairs. Erickson Construction Co. Did you buy your home from a previous owner? If so, look for any evidence of past repairs.
- Uneven floors. Erickson Construction Co. Slanted floors can also be an indicator of settling. This can be checked using tape measures, laser lines, and levels.
- Unstable chimney. Lastly, if your home has a chimney which shows signs of cracking or leaning, this could also indicate settling.
What is the total settlement of a foundation?
The total settlement of a foundation is the sum of the elastic settlement and the consolidation settlement. Consolidation settlement comprises two phases: primaryand secondary. The fundamentals of primary consolidation settlement were explained in detail in Chapter 2.
How does differential settlement damage a concrete wall?

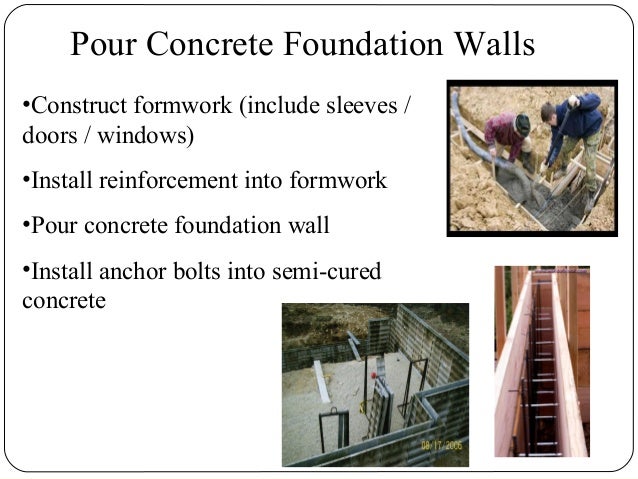

Differential settlement will damage the foundation or wall by producing (usually vertical, possibly diagonal or stair stepped) cracks and other symptoms of wall movement. The large foundation crack in this poured concrete wall was caused by differential settlement in a new foundation wall.
How do you measure differential settlement?
As usally understood, differential settlement is measured as between udifferent footings, no between different assumptions of settlement at the same footing (even if a range of settlements may be properly aduced to obtain own settlement and differential settlements with other footings).
What is uniform settlement in a foundation?
Anytime that a home’s foundation is sinking, whether it is at initial construction or any other time, if the entire slab sinks down to the same depth then it is called uniform settlement. So the home is moving down equally in all areas.
How is foundation settlement calculated?
Worked Example Calculation of Settlement of Shallow Foundations at the CenterData. Dimensions of foundation 1.5m x 2m. ... A1 = 0.934. A2 = m' / [ n' (m'2 +n'2 + 1)0.5 ] ... F1 = (1/π)[A0 + A1] = (1/π)[0.760 + 0.934] = 0.539. F2 = (n'/2π) tan-1A2 ... If = 0.755. Foundation Settlement.
How do you monitor foundation settlement?
Monitoring SettlementCracks in floor slabs and walls are monitored with crackmeters.Misalignment or separation of incoming utilities or expansion joints can be monitored with jointmeters.Differential settlement of floors and walls can be monitored with hydrostatic level cells.More items...
How is foundation movement measured?
Measure from the string in to the wall at various heights up the wall. The concrete block foundation wall above is visibly bulged inwards and water-stained.
How do you measure a building settlement?
There are several ways to monitor building settlement. These include:Tilt Beam Sensors.Optical Surveys.Liquid Level Sensors.
How do you measure if a crack is getting bigger?
0:161:55Interior House Cracks | 3 Ways to Monitor Them - YouTubeYouTubeStart of suggested clipEnd of suggested clipIn the last way it's easy as well the tape trick you can just take a piece of painters tape. And putMoreIn the last way it's easy as well the tape trick you can just take a piece of painters tape. And put it snug over a crack. And then give it a few months and see if that changes.
How do you measure a foundation crack?
To monitor a crack in your foundation, you should first see if the crack is larger than the width of a penny. Just hold the penny up to the crack and if it is larger, then it is probably something that you need to worry about immediately.
How much movement in a foundation is normal?
As of 2021, the two numerical standards that are most widely used are 1% for tilt and L/360 for deflection. A tilt of 1% is one where foundation slopes exceed a rise or fall of one inch in a span of 100 inches.
How much foundation movement is too much?
Given the existing published standards, and the ability of most individuals to feel a deflection or slope in a foundation, it is our opinion that, in general, the most appropriate standard for maximum acceptable deflections is 1/360.
What is acceptable variation in the foundation?
Foundations walls should be level within 1/4 inch in 10 feet, while the entire foundation should be level within 1/2 inch. The Handbook states that there is no single accepted tolerance for rough framing, although a tolerance of 1/4 inch in 10 feet is frequently used and is acceptable.
What is building settlement marker?
Structure settlement marker is used to monitor the movement of the existing buildings/ structures which may be affected by the works. Featuring a spherical head and a plated body that minimize damage to the building, the wall-mounted marker is installed around the external facade of the building.
How do I know if my foundation is settling?
4 Signs Your Home Has a Sinking FoundationFoundation Cracks. One of the most obvious signs that you've got a problem with foundation sinking or settling is finding noticeable cracks in your foundation walls. ... Crack In Walls Or Above Windows And Door Frames. ... Sticking Doors Or Windows. ... Uneven Floors.
What is an acceptable settlement for foundations?
Generally the settlements of shallow foundations such as pad or strip footings are limited to 25 mm (Terzaghi, 1996). Recent studies on (especially small scale) shallow foundations have shown that allowable bearing capacity occur at settlement of between 5 to 10 % of foundation width.
How much foundation settlement is normal?
How much foundation settlement is too much? The industry standard is 1 inch of differential settlement in 20 feet. Anything greater than this can be considered too much.
How long does foundation take to settle?
A home's foundation can take between one and three years to settle. Usually, as long as your home has a solid foundation and is somewhere with stable ground conditions, you shouldn't notice too much movement or settlement.
Why are soil samples tested in the laboratory?
Soil samples are tested in the laboratory to determine the settlement characteristics of the soil under load. These characteris- tics are used to estimate the amount of settlement of a structure which would result from the consolidation of its earth foundation because of the structure load.
What is the one dimensional consolidation test?
LIMITATIONS OF THE ONE -DIMENSIONAL CONSOLIDATION TEST As seen in the descriptions of the appa- ratus and the testing procedure, the one- dimensional consolidation test represents the settlement of a soil structure that has total lateral restraint, and in which there is drainage only in the vertical direction. It is quite apparent that these conditions are not truly comparable to the conditions found in most foundations. The degree of reliance to be placed on settlement studies based on this type of test depends on how nearly the foundation conditions will approach those of the test specimen In any event, sound rea- soning is necessary to make the best appli- cation of the data. In general, it is felt that the actual structural loading most compa- rable to the laboratory test loading is that exerted on a compressible stratum at rel- atively great depth and of fine material of finite thickness, and which is bounded above and below by dense free-draining materials. In order for the consolidating load to be uni- form over a reasonably large portion of the stratum, the structural loading would have to cover a rather large surface area. The laboratory testing equipment, pri- marily intended for use in the study of the consolidation of clays, limits the grain size to minus No. 4 (4.76 mm diameter). Actu- ally, the maximum grain size should be considerably smaller than No. 4 for best results in estimating settlement. It has been found by experiment that gravelly material reduces consolidation. I4 l4 Gibbs, Harold J., “The Effect of Rock Content and Placement Density on Not only do the gravel particles replace compressible soil, but there is a definite indication that particle interference of the gravel reduces the consolidation of the fine material. This reduction in consolidation becomes more pronounced as the rock con- tent becomes greater. Although this effect does occur with small rock contents, in general it is believed that the effect is only slight for rock contents less than 25 percent. In the case of a settlement study for a stratum near the surface and for a small loaded area, lateral bulging may be of con- siderable importance. Under these condi- tions the soil would not have complete lateral confinement and much settlement may be attributed to the shifting of material and not to consolidation Figure 10 is a diagram- matic sketch that illustrates the action of the settlement of a loaded area. I5 The solid lines below footing represent an idealized pressure bulb or zone within which appre- ciable stresses are caused by the loading on the footing. The displaced posi- tions of these lines are shown by the dashed lines with the magnitude of change consid- erably exaggerated. If the settlement is caused principally by the squeezing out of the soil from under the loaded area, the zone and the element shown in the center of the zone are distorted with little change in Consolidation and Related Pore Pressure in Embankment Construction,” Proceedings ASTM, Volume 50, 1950, pp. 1343-1360. I5 Taylor, op. cit., p. 570. Loading Intensity, q
How to study consolidation load data?
THEORETICAL INTERPRETATION FOR THE APPLICATION OF TEST DA’TA The consolidation-load and consolidation- time data may be studied in greater detail by further analysis of the test curves. A con- venient way to study consolidation-load data is to plot void ratio against pressure. This curve may be plotted by arithmetic scales or with the pressure values to a logarithmic scale, depending on the type of material. The usual method is to use a semilogarith- mic plot sheet, as in Figures 4 and 5. When using such a plot for clayey soils the rec- ognized theories 6y7 related to this plotting method are very often helpful. Load Consolidation The shape of the consolidation curve for 6 Terzaghi, K:, and Peck, R. B., U Mechanic in ngineerine: Prac i e Wiley &‘S%s,%ew York, 1948, ki &I%? 7 Taylor, op. cit., pp. 217-219. a natural clay soil, initially deposited in very loose condition and gradually loaded with increasing overburden and structural pressures (referred to as normally-loaded soil), has been found to be an approximately straight line on a semilogarithmic plot. It may be represented by the empirical equation, e = e, - c, Loglo- P, +AP . (1) PO where C, = compression index
What does the dotted vertical iinee represent?
Note : The dotted vertical iinee represent the time intervals a are ueually me&e for etandard teats. tt which readinge FIGURE 3 - Time--Consolidation teat data for each increment of load application.
What is uniform settlement?
Uniform building settlement: an entire building moves up or down together, causing little or no foundation cracking or damage, though there could be important damage to mechanical connections to the building and even dangerous gas line leaks.
Where is tripping settlement of 3.5?
tripping settlement of 3.5" in Bangladesh.
What is the movement of a foundation wall?
Bulging foundation wall movement: the wall may bend or "bulge", tending to bulge away from the force (usually inwards into the building from earth, water, or frost pressure), with the greatest amount of inwards movement at or near the point of greatest pressure or force being applied.
What are the different types of foundation failure?
This article series describes how to recognize and diagnose various types of foundation failure or damage, such as foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls.
Why do you need to combine on site observations with specific building information?
To be used properly, this information must be combined with specific on-site observations at the particular building in order to form a reliable opinion about the condition of that building's foundation.
What is leaning foundation wall movement?
Leaning foundation wall movement: the wall may lean away from the force being applied (usually into the building from the same forces listed above).
What causes vertical movement in foundations?
Vertical movement in foundations, in the most general cases, is caused by downwards movement of the wall or wall footings such as when a wall footing sinks in soft soil, or by an up and down movement of the wall or wall footings such as when a wall is disturbed by frost in a freezing climate or by expansive clay soils which expand or shrink as their water content increases or decreases.
What is foundation settlement?
Foundation settlement is a term used in the construction industry, the world of engineering, real estate, and home improvement, as well as by foundation repair contractors. It’s one of those terms that’s defined differently by everyone. It also gets interchanged with other terms that sort of mean the same thing, but not quite.
What are the different types of foundation settlement?
Yes, there are different types of foundation settlement or, to use a word that makes more sense, foundation movement. The seven settlement types are defined by either when or how the movement takes place, or by its severity. Here’s a list of them and we will go over each one in a bit more detail.
Why won't you notice settlement?
You likely won’t notice anything at all because the initial settlement should not be noticeable. But if the ground prep process was poorly done, the initial settlement effects could be more visible than a homeowner would like.
What is Anchor Foundation Repair?
We have inspected and repaired thousands of foundations in the Bryan-College Station area for the past 35 years and counting. We know what settlement means and looks like in Brazos Valley homes.
How does seasonal settlement get its name?
Seasonal settlement gets its name from the seasons of the year. Winter, spring, summer, and fall each have their own weather characteristics and it will be either dry, rainy, or a little bit of both.
What does "foundation movement" mean?
Foundation movement is the closest term that matches what foundation settlement really means. It means your foundation moves , and it has not yet “settled down” and stopped moving. Yes, this is the opposite of making sense because somehow settling means moving but alas . . . I can explain no further . . .
How long does it take for a house to settle?
The soil compresses and compacts underneath the weight of the home and the home will sink down some. The initial settlement period lasts from between 18 to 24 months after a new home is built.
When do you need elevation readings?
We need an initial elevation readings when the building was new to make any sense of what has settled. Without that information, start from scratch - hire a geotechnical firm.
Why do roof trusses contract?
Some roof truss systems can expand and contract, top versus bottom cords, due to differing outside and inside temperatures. The result will be noticed inside at the junction of walls and ceilings. The cracks will change in width depending on time of day and cloud cover.
Will Eng tips check this out?
The Eng-Tips staff will check this out and take appropriate action.
Most recent answer
First of all, you must understand that soil settlement is vertical displacement of the material, produced by vertical strain in soil. In general, settlements happen during whole soil history (by vertical geostatic stresses from self weight), and this process is called consolidation.
Similar questions and discussions
Can anyone provide reference about estimation of c’ and φ’ for both clay and sand please?
Why is my foundation cracking?
In foundation piers and piles, general cracking is often due to settlement or rotation of the pier footing. Vertical cracking or bulging of a masonry foundation wall is often due to physical deterioration of the pier from exposure, poor construction or overstressing.
What is the best way to seal cracks in a foundation?
Masonry Crack Caulks: filling a foundation crack with a masonry caulk is a quick, inexpensive, and effective way to seal the crack; some caulks, such as pourable sealant used to close floor cracks during radon mitigation work, are easy and effective to use.
What is the ISBN number for Defects and Deterioration in Buildings?
Defects and Deterioration in Buildings: A Practical Guide to the Science and Technology of Material Failure, Barry Richardson, Spon Press; 2d Ed (2001), ISBN-10: 041925210X, ISBN-13: 978-0419252108. Quoting:
What causes cracks in masonry?
Some causes of cracking include: settlement or foundation erosion, decay of materials, "vandalism" by renovators, structural failure, change in materials or geometry, and moisture and temperature changes.
How many pages are in Best Practices Guide to Residential Construction?
Best Practices Guide to Residential Construction, by Steven Bliss. John Wiley & Sons, 2006. ISBN-10: 0471648361, ISBN-13: 978-0471648369, Hardcover: 320 pages, available from Amazon.com and also Wiley.com. See our book review of this publication.
Why does foundation movement occur?
Usually foundation movement and further cracking occurs in response to occurrences of what has caused the cracking in the first place.
Who wrote the book "Diagnosing and Repairing House Structure Problems"?
Diagnosing & Repairing House Structure Problems, Edgar O. Seaquist, McGraw Hill, 1980 ISBN 0-07-056013-7 (obsolete, incomplete, missing most diagnosis steps, but very good reading; out of print but used copies are available at Amazon.com, and reprints are available from some inspection tool suppliers). Ed Seaquist was among the first speakers invited to a series of educational conferences organized by D Friedman for ASHI, the American Society of Home Inspectors, where the topic of inspecting the in-service condition of building structures was first addressed.
How to calculate settlement of a foundation?
First of all, you have to determine the average stress in the clay layer below the centre of the foundation, and then you can calculate the settlement using the appropriate equation: ∆𝜎�𝑣=4��[ �2��(𝐻
What is the total settlement of a foundation?
The total settlement of a foundation is the sum of the elastic settlement and the consolidation settlement. Consolidation settlement comprises two phases: primaryand secondary. The fundamentals of primary consolidation settlement were explained in detail in Chapter 2.
What is secondary consolidation settlement?
Secondaryconsolidation settlement occurs after the completion of primary consolidation caused by slippageand reorientationof soil particles under a sustained load. Primary consolidation settlement is more significant than secondary settlement in inorganic clays and silty soils. However, in organic soils, secondary consolidation settlement is more significant.
Why do we substitute in the equation of Se?
Substitute in the equation of Se in order to get the elastic settlement of sandy soil.
What are the two major categories of settlement?
The settlement of a shallow foundation can be divided into two major categories: (a) elastic, or immediate settlement and (b) consolidation settlement.
How to test a plate?
To conduct a plate load test, a hole is excavated with a minimum diameter of 4B(B is the diameter of the test plate) to a depth of Df, the depth of the proposed foundation. The plate is placed at the centre of the hole, and a load that is about 1/4 to 1 /5 of the estimated ultima te load is applied to the plate in steps by means of a jack. During each step of the application of the load, the settlement of the plate is observed on dial gauges. At least one hour is allowed to elapse between each application. The test should be conducted until failure, or at least until the plate has gone through 25 mm (1 in.) of settlement.
Who suggested that the net allowable bearing pressure should be increased by about 50%?
Later, Meyerhof (1965) suggested that the net allowable bearing pressure should be increased by about 50%. Bowles (1977) proposed that the modified form of the bearing equations be expressed as:
What is foundation surface elevation?
Foundation surface elevation surveys are frequently used in foundation performance evaluations intended for forensic reports in construction defect lawsuits. In the normal situation, an elevation survey is intended to shed some light as to whether visible damage, such as drywall cracks, is due to foundation movement or to some other issue, such as framing.
What is slab surface geometry?
Slab surface geometry is a function of the as-constructed surface geometry and the load-induced post-construction distortion of the slab deflection surface5 including both the initial settlement of the foundation and distortion due to expansive soil movement. When using slab surface elevation measurements to evaluate the performance of a slab-on-ground foundation, it is important to be able to separate the changes in surface geometry due to foundation movement from other factors that influence foundation surface geometry. As-constructed foundation surface irregularities can easily be accommodated in the framing and finishing of the house. It is only the changes in the surface geometry that result from foundation movement after the construction of the house that causes damage to the house such as door frame distortion, drywall cracking and brick veneer cracking. Thus, the technical literature of interest addresses the as-constructed surface levelness of slab-on-ground foundations and the relationship between measures of foundation surface levelness and damage to the supported structure. Papers that address these issues are discussed below.
Can elevation survey data be used in slab on ground foundations?
A review of the published protocols discussed in this paper shows that, in the current state of practice, there appears to be little agreement on how elevation survey data should be used in the performance evaluation of slab-on-ground foundations. There is no agreement concerning the spacing or number of elevations. The different protocols assign very different meanings to the results of elevation survey analysis. Because there is no agreement concerning the spacing or number of elevations, different engineers using the same protocol can approach the performance evaluation of a foundation very differently and may reach different, even conflicting, conclusions.
Is Texas a one and two family building code?
The Texas State Legislature recently adopted the International Residential Code for One and Two Family Dwellings as a state building code . The following is a summary of some key issues from this code:
Vertical Movement in Foundations & Walls
Horizontal Movement in Foundations & Masonry Building Walls
- Horizontal movement in building foundations or walls is generally caused by an external lateral or "sideways" force applied tosome portion of the wall. Depending on the construction materials used and the strength of a foundation wall, a force applied to thewall can cause it to move in any of several ways which we discuss in detail at HORIZONTAL MOVEMENT IN FOUNDATIONS. 1. B…
