The settlement of a foundation that is acceptable both structural and esthetic point of view is called allowable settlement which generally includes a rational factor of safety. As esthetic issue is considered to set acceptable settlement, architect often take part in determining allowable settlement.
Full Answer
What is allowable settlement for different structures?
Allowable Foundation Settlement for Different Structures The allowable settlement is defined as the acceptable amount of settlement of the structure and it usually includes a factor of safety. The allowable settlement depends on many factors, including the following: The Type of Construction
What is settlement in foundation construction?
The total vertical displacement that occur at foundation level is termed as settlement. The cause of foundation settlement is the reduction of volume air void ratio in the soil. Moreover, the magnitude of foundation settlement is controlled by many factors type of soil and foundation structure. Foundations on bedrock settle a negligible amount.
What is the maximum allowable settlement for a mat foundation?
For example; the maximum allowable settlement for mat foundation is 50 mm, and 25 mm for isolated footing. These foundations should be designed for these limiting values of settlement (by calculating the allowable bearing capacity from the allowable settlement). Thus, the allowable bearing capacity is the smaller of the following two conditions:
What is the maximum differential settlement in Foundation?
The maximum differential settlement in foundation on clayey soils and sandy soils should not exceed 40mm and 25mm respectively. The maximum settlement should generally be limited to the following values: Raft foundation on clay – 65 to 100 mm.Raft foundation on sand – 40 to 65 mm.
What is an acceptable amount of settlement for foundations?
How much foundation settlement is too much? The industry standard is 1 inch of differential settlement in 20 feet. Anything greater than this can be considered too much.
What is the allowable settlement for raft foundation?
65 to 100 mmThe maximum differential settlement in foundation on clayey soils and sandy soils should not exceed 40mm and 25mm respectively. The maximum settlement should generally be limited to the following values: Raft foundation on clay – 65 to 100 mm. Raft foundation on sand – 40 to 65 mm.
How do I calculate my foundation settlement?
To determine the settlement under a footing of given size loaded to the load per sq. ft. for which the curve is prepared, determine from the curve the settlement per unit of column load on the footing of the size required under the column load, and multiply by the total column load carried by the footing.
What is the maximum allowable settlement for a pile?
Pile settlement analysis showed that total expected maximum settlement value was 15.6 mm. It includes 2.1 mm settlement of pile deformation from vertical compressive loads. For such structure, foundation settlement should not be more than 2% of pile diameter.
How is raft foundation settlement calculated?
1:1451:58Mod-01 Lec-11 Shallow Foundation - Settlement Calculation - I - YouTubeYouTubeStart of suggested clipEnd of suggested clipWhere Q is equal to net foundation pressure so this is Q is the net foundation. Pressure. So this isMoreWhere Q is equal to net foundation pressure so this is Q is the net foundation. Pressure. So this is the net. Next mu is equal to poisons ratio of the soil.
What is allowable differential settlement?
As a general rule, a total settlement of 25 mm and a differential settlement of 20 mm between columns in most buildings shall be considered safe for buildings on isolated pad footings on sand for working load (unfactored).
What are the components of total foundation settlement?
The total settlement of the ground consists of 3 components: immediate settlement (commonly referred to as elastic settlement, although this is a misnomer), consolidation settlement (or primary settlement) and creep settlement (or secondary settlement).
What is the maximum permissible settlement for isolated foundation or sand as per IS code?
(i) Total Permissible settlement: For isolated footing on clay = 65 mm. For isolated footing on sand = 40 mm.

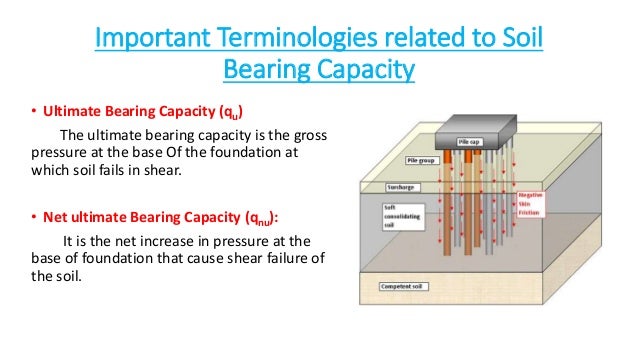

What is the allowable bearing capacity?
The allowable bearing capacity of soil is the amount of load the soil can take without experiencing shear failure or exceeding the allowable amount of settlement. This is the figure that is used in the design of foundations.
What is excessive settlement?
If the number of homesteads exceeds the maximum number of homesteads or if expansion of farm plots is observed, the rent will increase by 20 percent for every excess homestead or every expanded or new farm plots.
Is it normal for a house foundation to settle?
That said, standard settling is nothing to worry about and often won't have too much of an impact on the foundation and structure of a building. With soil expansion and contraction, it is normal for a part of a building to move a few inches.
What is permissible settlement for isolated footing on sand?
(i) Total Permissible settlement: For isolated footing on clay = 65 mm. For isolated footing on sand = 40 mm.
What happens due to unequal settlement?
Differential settlement is the uneven or unequal settling of a building's foundation. This occurs when the soil under your foundation contracts, expands, or shifts irregularly. Differential settlement causes the structure to settle at a variable rate.
Is code for settlement of shallow foundation?
IS 8009-1:IS 8009-1: Code of practice for calculation of settlements of foundations, Part 1: Shallow foundations subjected to symmetrical static vertical loads.
What is an acceptable settlement?
The allowable settlement is defined as the acceptable amount of settlement of the structure and it usually includes a factor of safety. The allowable settlement depends on many factors, including the following:
Which structure can sustain larger values of total settlement and differential movement?
It indicates that those structures that are more flexible (such as simple steel frame buildings) or have more rigid foundations (such as mat foundations) can sustain larger values of total settlement and differential movement. 1.
What are aesthetic and serviceability requirements?
Aesthetic and Serviceability Requirements. The allowable settlement for most structures, especially buildings, will be governed by aesthetic and serviceability requirements, not structural requirements. Unsightly cracks, jamming doors and windows, and other similar problems will develop long before the integrity of the structure is in danger.
Is it acceptable to have small cracks in a house?
The Use of the Structure. Even small cracks in a house might be considered unacceptable, whereas much larger cracks in an industrial building might not even be noticed.
What is foundation settlement?
Foundation settlement is a term used in the construction industry, the world of engineering, real estate, and home improvement, as well as by foundation repair contractors. It’s one of those terms that’s defined differently by everyone. It also gets interchanged with other terms that sort of mean the same thing, but not quite.
What are the different types of foundation settlement?
Yes, there are different types of foundation settlement or, to use a word that makes more sense, foundation movement. The seven settlement types are defined by either when or how the movement takes place, or by its severity. Here’s a list of them and we will go over each one in a bit more detail.
Why won't you notice settlement?
You likely won’t notice anything at all because the initial settlement should not be noticeable. But if the ground prep process was poorly done, the initial settlement effects could be more visible than a homeowner would like.
What is Anchor Foundation Repair?
We have inspected and repaired thousands of foundations in the Bryan-College Station area for the past 35 years and counting. We know what settlement means and looks like in Brazos Valley homes.
How does seasonal settlement get its name?
Seasonal settlement gets its name from the seasons of the year. Winter, spring, summer, and fall each have their own weather characteristics and it will be either dry, rainy, or a little bit of both.
What does "foundation movement" mean?
Foundation movement is the closest term that matches what foundation settlement really means. It means your foundation moves , and it has not yet “settled down” and stopped moving. Yes, this is the opposite of making sense because somehow settling means moving but alas . . . I can explain no further . . .
How long does it take for a house to settle?
The soil compresses and compacts underneath the weight of the home and the home will sink down some. The initial settlement period lasts from between 18 to 24 months after a new home is built.
What is foundation settlement?
Inevitably, soils deform under the load of foundation structures. The total vertical displacement that occur at foundation level is termed as settlement. The cause of foundation settlement is the reduction of volume air void ratio in the soil. Moreover, the magnitude of foundation settlement is controlled by many factors type of soil and foundation structure. Foundations on bedrock settle a negligible amount. In contrary, Foundations in other types of soil such as clay may settle much more. An example of this is Mexico City palace of fine arts has settled more than 15 feet (4.5m) into the clay soil on which it is founded since it was constructed in the early 1930s. However, building foundation settlement is normally limited to amounts measured in millimeter or fractions of an inch. Structures will suffer damages due to settlement of its foundation specifically when the settlement occur in quick manner. In this article, different types of foundation settlement along with their cases and expected effects on the structure will be discussed.
What is the most probable type of settlement?
If all parts of a building rest on the same kind of soil, then uniform settlement the most probable type to take place.
Where does immediate settlement take place?
Immediate settlement take place mostly in coarse grained soils of high permeability and in unsaturated fine-grained soils of low permeability.
How long does primary settlement take?
It also termed as primary consolidation. Take place over long period of time that ranges from 1 to 5 years or more. Primary settlement frequently occurs in saturated inorganic fine grain soil. Expulsion of water from pores of saturated fine grain soil is the cause of primary settlement.
What is differential settlement?
Differential settlement occurs if there is difference in soils, loads, or structural systems between parts of a building. in this case, different parts of the building structure could settle by substantially different amounts. Consequently, the frame of the building may become distorted, floors may slope, walls and glass may crack, ...
How many feet of soil did the Mexico City Palace of Fine Arts settle into?
An example of this is Mexico City palace of fine arts has settled more than 15 feet (4.5m) into the clay soil on which it is founded since it was constructed in the early 1930s. However, building foundation settlement is normally limited to amounts measured in millimeter or fractions of an inch.
Does uniform settlement affect building safety?
Commonly, uniform settlement has small detrimental influence on the building safety. However, it influences utility of the building for example damaging sewer; water supply; and mains and jamming doors and windows. Fig.3:Uniform foundation settlement, no cracks development.
What is allowable settlement?
allowable settlement for foundation as per is code. The allowable settlement is defined as the acceptable amount of settlement of the structure and it usually includes a factor of safety. The allowable settlement depends on many factors, including the following:
How much settlement is allowed on a raft?
For an isolated foundation on clayey soil, max allowable settlement is 75mm as per IS 1904.For sands & hard clay it is only 50mm. And for rafts founded on sands & hard clay it is limited to 75mm whereas for soft clays it is allowed upto 100mm.
What is the minimum size for a raft foundation?
The recommended design limits for settlement in clay for raft foundations should be 65 – 100 mm, and 50 mm for raft foundations on sand.
What is the minimum depth of foundations in sand and clay?
The prescriptive pressures for Foundations in Sands and Clays for a minimum depth of 0.6 m below ground level is given in Tables 6 and 7 respectively in theCode. The recommended design limits for settlement in clay for raft foundationsshould be 65 – 100 mm, and 50 mm for raft foundations on sand.
What is the maximum differential settlement in soil?
The maximum settlement should generally be limited to the following values: Raft foundation on clay – 65 to 100 mm.Raft foundation on sand – 40 to 65 mm.
How deep should a foundation be?
The prescriptive pressures for Foundations in Sands and Clays for a minimum depth of 0.6 m below ground level is given in Tables 6 and 7 respectively in the Code.
Which structure can sustain larger values of total settlement and differential movement?
It indicates that those structures that are more flexible (such as simple steel frame buildings) or have more rigid foundations (such as mat foundations) can sustain larger values of total settlement and differential movement.
What is Foundation Settling?
Settling is essentially the all-encompassing term used to describe the natural changes that take place in a foundation over the years. The two major culprits of foundation settling are time and weather.
What is the difference between initial settlement and ongoing settlement?
It should also be noted that there’s a difference between initial settlement and ongoing settlement due to site factors. Initial settlement happens within the first few years of construction – as mentioned above. Ongoing settlement due to site factors is continued settlement that’s related to site-specific issues. In other words, this is settlement that will likely continue over time and needs to be monitored and handled.
How do you know if your foundation is shifting?
However, if any of the following signs are present, then they could indicate a larger issue: Wall cracks. If you see jagged cracks running at 45-degree angles throughout your home, this is a telltale sign that your foundation is shifting. In fact, it’s shifting so much that the sheetrock is being torn apart.
How long does it take for a new home to settle?
If there’s been improper soil preparation or extreme weather conditions, it’s possible for brand new homes (less than five years old) to see substantial settlement. This generally happens when a home is built during a drought, and a rainy season occurs after construction is completed. The clay soil expands and the house experiences some settlement. Then, if another drought follows, the clay will retract and it’s possible to see a few inches of settlement in a matter of weeks or months.
What happens if you settle too much?
However, only a certain amount of settlement and movement should occur. If too much settlement happens, serious foundational problems could result .
How does a new home settle over time?
Over time, a new home gradually sinks into the ground, and a lot depends on the soil composition and climate. Good builders and contractors are familiar with the local soil and can accurately predict how much a foundation will settle over time, but there is no exact science.
Do houses have settlement?
Every house will see some settlement over the years. In fact, a few inches of settlement is nothing to worry about (assuming this settlement is evenly distributed across the structure). Soil expansion and contraction cannot be controlled and quality construction will hold up under normal variances.
How to calculate elastic settlement?
Elastic Settlement under a flexible foundation can be calculated from the following equation: S c=∆σ(αBñ) 1−μ q 6
What is the equation for elastic settlement?
This method used for calculating elastic settlement only for saturated clay from the following equation: S c=A 5A 6
What is the term for the process of pore water being extruded from the void spaces of saturated clay?
b) Consolidation Settlement ( ): Consolidation settlement occur over time, such that pore water is extruded from the void spaces of saturated clayey soil submerged in water. Consolidation settlement comprises two phases: Primary and secondary.
What Is The Definition of Foundation Settlement?
Foundation Settlement Goes by Other Names
- Some industry people use foundation settlement, foundation problems, and foundation issues interchangeably (heck, we do it all the time!). Others say things like “cracked foundation” or “cracked slab” and just mean settlement. Even though people tend to throw all these terms around like they are the same thing, they are not exactly the same. Foundation movement is the closest …
There Is No “Normal” When It Comes to Foundation Settlement
- You might often hear people say, “Oh, that’s normal,” when it comes to foundation settlement. It’s not so much normal, but more like *not unusual* or *nothing to worry about.* A better term than normal would be “minimal” settlement. Think of a small (not really noticeable) crack that doesn’t get any larger over time. A door that doesn’t latch quite right at certain times of the year but get…
What Are The Different Types of Foundation Settlement?
- Yes, there are different types of foundation settlement or, to use a word that makes more sense, foundation movement. The seven settlement types are defined by either when or how the movement takes place, or by its severity. Here’s a list of them and we will go over each one in a bit more detail. 1. Initial 2. Seasonal 3. Uniform 4. Differential 5. Tipping 6. Acceptable 7. Unaccepta…
Control Foundation Settlement with Foundation Repair
- Whenever a home experiences too much damage or problems from foundation settlement, the homeowner might be ready for it to stop moving so much and causing issues. Foundation repair is the solution to your foundation movement problem. Anchor Foundation Repair has repaired thousands of home foundations in the Bryan, College Station, and Brazos Valley communities fo…
