The following signs observed in the building reflects differential settlement:
- Leaking of the roof and the basement
- Cracking of bricks or the walls
- Drywall Separation
- Windows and Door Sticking
- Leaning of Garage
- Wall bulging or leaning
- Tilting of Chimney
- Cracks in steps - masonry mortar joints
What are the 4 types of settlements?
hamlets are are tiny settlements - they are just a collection of houses, perhaps centered around a few farms and maybe without even a shop; villages are small settlements - several hundred people live in them and they have: a few shops, a place of worship and maybe a school too; towns are medium-sized settlements - thousands of people live in them and they have a shopping centre and factories;
What causes leach pad liner differential settlement?
Settlement of the underlying foundation may lead to disruption of the leach pad system. Differential settlement typically results from one of three causes: the liner spans soils of differing compressibility, the slope and height of the heap are extreme or local settlement results from leaks in the liner.
What are the different types of settlements?
What types of settlements are there?
- Section 32. A Section 32 Waiver Agreement is when the person who has been injured on the job and an insurance company avoid going to court because they can determine ...
- Lump Sum. A lump sum payment is less popular than it once was because of the Section 32 option. ...
- Stipulation. ...
- Reduced Earnings. ...
What does linear mean in settlement patterns?
A linear settlement is a form of settlement where buildings are built along the river, a coastline or a road. It usually forms a long and narrow pattern, which can be maintained even when the population grows. Linear settlements are formed as a result of main transport networks, such as roads, railways and geographical restrictions.
How do you solve differential settlements?
2:173:46Differential Settlement. - Its Causes and How to Prevent it - YouTubeYouTubeStart of suggested clipEnd of suggested clip1 do proper geotechnical investigation of the soil. To study the surrounding environment 3 the soilMore1 do proper geotechnical investigation of the soil. To study the surrounding environment 3 the soil over which the building is constructed must not be expansive in nature.
How much differential settlement is acceptable?
The industry standard is 1 inch of differential settlement in 20 feet. Anything greater than this can be considered too much.
What is a differential settlement?
Differential settlement commonly occurs as a result of the non-uniform movement of the underlying soils (soil settlement at different rates). This type of settlement can result in cracking to the foundation, exterior cladding, and interior finishes.
What is the difference between settlement and differential settlement?
Unlike uniform or “normal” settling, which basically means that the foundation settles at the same rate over its entire footprint area, differential settlement involves a non-uniform movement of the underlying soil, which causes the foundation along with the structure above to settle in an uneven fashion.
What is an acceptable slope for a foundation?
The consensus seems to be that a good slope to aim for when grading land extending out from a house foundation is about 6 inches for the first 10 feet (that translates to a "slope" of 5 percent).
Why differential settlement is considered harmful for structure?
When properly compacted, this fill soil can provide a perfectly solid base for supporting foundations, but when not compacted, the soil may settle and compress unevenly under the foundation, leading to structural damage.
What are the differential settlement on structure?
Differential Settlement of the Building When the settlement of the entire structure is not even i.e. not same for all footing and for all wall, it is known as differential settlement. Differential settlement is an undesirable factor for civil structures.
How is soil settlement calculated?
1. Calculation of stresses. Structures with their loads generate a stress change in the soil. In order to be able to calculate settlements in the soil due to this change in stress, it is necessary to know the spreading and distribution of the stresses in the foundation soil.

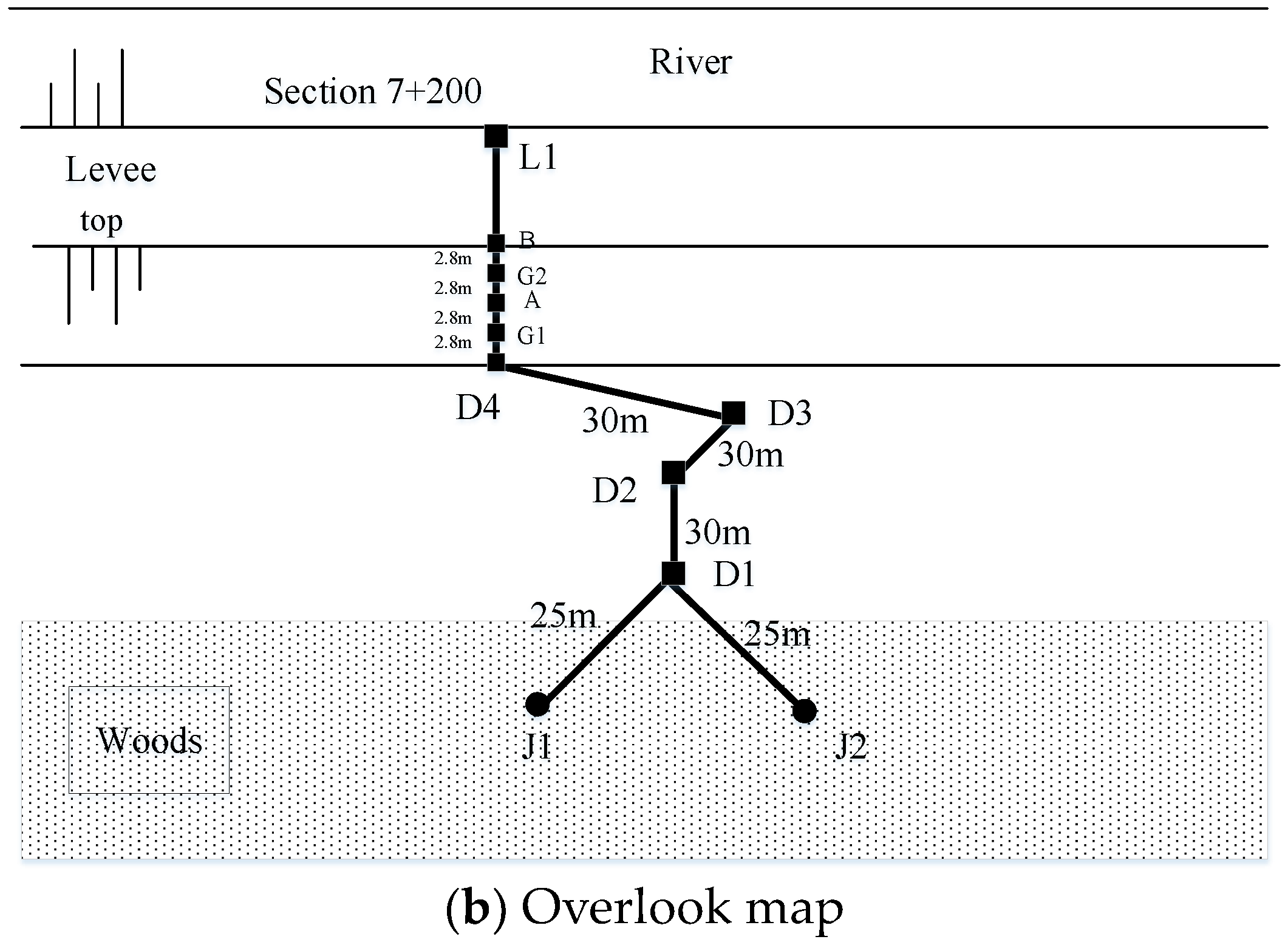

How is building settlement measured?
There are several ways to monitor building settlement. These include:Tilt Beam Sensors.Optical Surveys.Liquid Level Sensors.
How do I find my foundation settlement?
Finding cracks in the drywall throughout your house is usually the most reliable indicator of foundation settlement. Cracks are often larger and more obvious in the home's upper levels, at the corners of doors and windows or along drywall seams.
How much should a house shift?
Cost To Elevate & Move House To New Foundation The average cost to move a house to a new foundation is $15,000 to $60,000 or $12 to $16 per square foot.
What type of foundation is effective for overcoming differential settlement?
A floating foundation is an excellent option to choose to overcome excessive settlements. The compensating foundation reduces the net load on the soil and consequently reduces differential settlement.
What is a settlement amount?
More Definitions of Settlement Amount Settlement Amount means the amount in US$ equal to the sum of Losses, Gains, and Costs, which the Non-Defaulting Party incurs as a result of the termination of this Agreement.
How does the settlement process work?
A settlement agreement works by the parties coming to terms on a resolution of the case. The parties agree on exactly what the outcome is going to be. They put the agreement in writing, and both parties sign it. Then, the settlement agreement has the same effect as though the jury decided the case with that outcome.
What is the meaning of settle the payment?
Once a transaction has been approved, settlement is the second and final step. This is when the issuing bank transfers the funds from the cardholder's account to the payment processor, who then transfers the money to the acquiring bank.
What is a settlement in civics?
1 : a formal agreement that ends an argument or dispute. 2 : final payment (as of a bill) 3 : the act or fact of establishing colonies the settlement of New England. 4 : a place or region newly settled.
What Causes Differential Settlement?
The main cause of differential settlement is the expansion and contraction of the soil beneath the foundation. The main reasons for this movement are:
What does difference of elevation/settlement of two adjacent columns in a structure give?
The difference of elevation/settlement of two adjacent columns in a structure will give the value of the differential settlement. The difference of elevation across the boundary of the structure can also give a value for differential settlement if there exists any non-uniformity.
How long does it take for a settlement to occur?
This can occur after 2 to 3 years from the completion of the building. Uniform settlement does not bring any severe issue to the building.
Is differential settlement necessary?
Prevention of Differential Settlement. Its not necessary that the differenti al settlement will leave behind a symptom. So its necessary to evaluate the site with utmost accuracy and care. If the site is made of clayey or expansive or contracting soils, a resistance or helical pier system will be the best choice.
Does differential settlement leave a symptom?
Its not necessary that the differential settlement will leave behind a symptom. So its necessary to evaluate the site with utmost accuracy and care. If the site is made of clayey or expansive or contracting soils, a resistance or helical pier system will be the best choice.
What is differential settlement?
Differential settlement describes the difference in settlement between two points in the same foundation or building. Total settlement is often not much of a problem as long as the whole building settles at the same rate. Differential settlement of the foundation however can be much more damaging to the buildings structure as this imposes new stresses on the buildings structure and facade.
How does differential settlement affect a building?
Differential settlement of the foundation however can be much more damaging to the buildings structure as this imposes new stresses on the buildings structure and facade. Differential settlement can lead to unsightly cracking in minor cases and even structural damage or collapse in extreme instances.
Why do some parts settle more than others?
The most common cause is when there are variable ground conditions underneath the building, leading to some parts settling more than others. Where this is the case the differential settlement can be estimated by calculating the total settlement for each part of the structure and comparing.
What is differential settlement?
Differential settlement is the term used in structural engineering for a condition in which a building's support foundation settles in an uneven fashion, often leading to structural damage. All buildings settle somewhat in the years following construction, and this natural phenomenon generally causes no problems if ...
How to tell if a building has differential settlement?
Obvious signs include cracks in the concrete slab or foundation walls supporting the building, or doors and windows that are out of square or hard to open and close.
Why does my foundation settle?
Soil that is either too dry or too wet can cause foundation settlement. When moisture builds up, soils saturate and lose their load-bearing capacity. Dry soils shrink in volume. Either situation can cause uneven settling of the foundation.
What is uneven foundation settling?
Uneven foundation settling—differential settlement —is best prevented by careful analysis of the soil before a building foundation is constructed. The best soils for building foundations are nonexpansive —meaning that they contain little clay or silt content. Ideally, the building site will be native soil rather than a site artificially filled with outside soil.
How to tell if a foundation is differentially settled?
Other signs of differential settlement include breaks in seams between drywall panels, tilting chimneys, bulging walls, and exterior stairs that begin to tilt or sink. Some cracking in foundation walls is normal and expected with the passage of time, but when these cracks are wider at the top and narrow or nonexistent at the bottom, the soil beneath the foundation is likely settling at an uneven rate. You may see signs of vertical movement in the building's foundation, such as changes in the relative position of the foundation in relation to patios or concrete slabs edging the building.
Why is there uneven settlement of a foundation?
Uneven settlement of a foundation is always caused by some form of shifting of the soil beneath the foundation, but this shifting can take place for several reasons.
Why does soil shrink after foundation settlement?
This situation is more common with shallow foundations than with basement-level foundations that extend down many feet. When foundation settlement begins to occur several decades after construction, the soil has likely shrunk because large trees are drying out the soil.
What is the maximum differential settlement of a brick wall?
For maximum angular distortion of 1/300 (δ/L), in a frame building cracking in brick panels or in brick wall of load bearing building will occur at maximum differential settlement (Δ) of 32 mm (1.25 inches).
What is settlement governed by?
Coduto also interestingly concluded settlement that in most case structures, particularly buildings, settlement is governed by serviceability and aesthetic requirements not by structura l. Visual hazard like jamming doors-windows, cracks and other identical problems appears first long before structural integrity is hampered.
What factors affect foundation damage?
In determining severity of foundation damage of an existing building, the category may be influenced by many factors which include crack width, maximum distortion and differential settlement. When basis of damage category is only single parameter like width of cracks, it may be erroneous as there may have patch or hidden cracks or when secondary or non-relevant factors like shrinkage cracking results opening of cracks. As an example, cracks in walls may be even not noticed under wall paper, which is only visible when crack reappear after additional foundation settlement.
What is allowable settlement?
Allowable settlement: The settlement of a foundation that is acceptable both structural and esthetic point of view is called allowable settlement which generally includes a rational factor of safety. As esthetic issue is considered to set acceptable settlement, architect often take part in determining allowable settlement.
What are the limiting values of angular distortion to open cracks?
The limiting values of angular distortion to open cracks (1/150 and 1/300) mentioned above were provided based on observation of load bearing structure and reinforced concrete and steel frame buildings have traditional brick panels as partition or peripheral walls, but not having diagonal bracing. These criteria can be taken as mere guide for regular construction work of typical foundation of such buildings; but in some cases suppressed by aesthetic or for other considerations.
What is the maximum settlement value for a chimney?
For structures supported on load bearing wall, the maximum settlement values are (2.5-5) cm. for chimneys, silos, mats this value lies in between (8-30) cm, for framed structure (5-10) cm. All type of structures discussed above may be subjected to non-uniform settlement.
What type of construction has more tolerance for settlement?
Construction Type: Different types of construction have different level of tolerance against settlement. For example, buildings having wood frame including wood siding will have more tolerance than unreinforced masonry buildings.
Which structure can sustain larger values of total settlement and differential movement?
It indicates that those structures that are more flexible (such as simple steel frame buildings) or have more rigid foundations (such as mat foundations) can sustain larger values of total settlement and differential movement. 1.
What is an acceptable settlement?
The allowable settlement is defined as the acceptable amount of settlement of the structure and it usually includes a factor of safety. The allowable settlement depends on many factors, including the following:
