What is not a likely cause of slab settlement? leaking hydronic heating system in the slab shrinkage of the concrete slab soil washed from beneath the slab faulty downspout and splash block. Shrinkage of the concrete slab. What can be a sign of slab detachment? roof rafters twisting
Full Answer
What happens when a concrete slab foundation fails?
In rare cases a concrete slab foundation will fail. Most often it is the floating slab floor of a ranch that settles. What we see most commonly is that a corner of a room settles and the rest of the structure remains intact. Usually this is due to bad drainage, ground movement, subsidence or poor construction.
What is a settlement crack in a concrete slab?
Settlement cracks in a conventional concrete floor slab which has been poured inside a separate foundation wall (and often resting at its edges on the building's foundation wall footings) are usually not connected to the foundation wall and are not supporting any structure [except possibly Lally columns, discussed below].
Do slabs settle in a ranch?
Slab Foundation Settling / Sloping Concrete. In rare cases a concrete slab foundation will fail. Most often it is the floating slab floor of a ranch that settles. What we see most commonly is that a corner of a room settles and the rest of the structure remains intact.
What causes a concrete slab to pitch in a building?
If the floor slab was reinforced with steel the entire slab may pitch in the direction of settlement. This condition occurs if the concrete was reinforced by steel or fiber cement, but was poured inside of a separate concrete or masonry block foundation.
What happens if a slab foundation cracks?
Water often comes up from underneath the basement, and if you have a slab crack, water can come in much more easily. You can also notice basement wall bowing and general basement humidity, mold, and mildew. The rest of your home will also have issues related to the foundation slab cracks.
How should plywood subflooring not lay?
To avoid buckling, subfloor panels should be spaced with a 1/8-inch gap at all edges and ends to provide room for naturally occurring expansion. Tongue-and-groove edges on many premium floor panels, such as Weyerhaeuser's Edge Gold® OSB panels, are designed to self-gap.

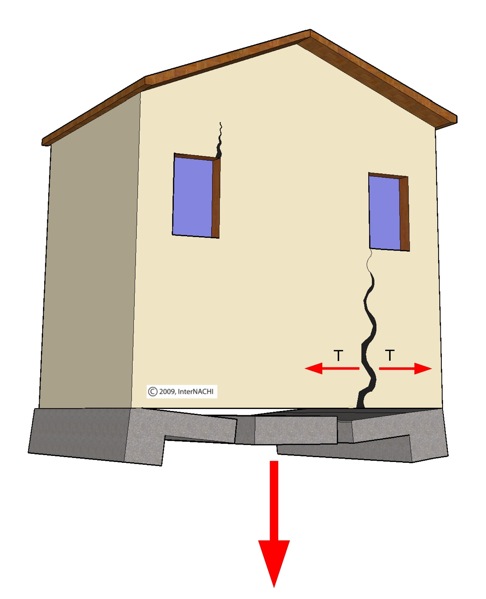

How do I know if my settlement is cracked?
If you have horizontal or vertical wall cracks, "stair-step" or diagonal cracks or bulging, buckling or bowing foundation walls, your home could be in need of foundation repair....Other signs of foundation settlement include:Sticking windows.Sticking doors.Gapping ceilings.Bouncy, uneven floors.Interior wall cracks.
What function do the walls likely serve in the settlement?
A defensive wall is a fortification usually used to protect a city, town or other settlement from potential aggressors. The walls can range from simple palisades or earthworks to extensive military fortifications with towers, bastions and gates for access to the city.
Should I insulate my subfloor?
A properly insulated subfloor reduces energy costs and will help keep your home comfortable year round. Most homes built before 1990 have insufficient or missing subfloor insulation. A visual inspection of your crawlspace will quickly determine whether insulation is properly installed.
Should you glue down subfloor?
The answer: Glue. Although using a subfloor adhesive (or subfloor glue) is not required by code, it is a standard practice that can help prevent floor squeaks by reducing the chance for movement at the panel-to-joist connection. A quality subfloor adhesive will also increase the overall stiffness of the floor.
How much settlement cracking is normal?
Settling cracks will be vertical, between two and six inches long, and 1/16 of an inch in width. If the cracks you're seeing are horizontal or wider than 1/16 of an inch, that could indicate improper settling.
What wall cracks are serious?
Measure the width of cracks with measuring tape. Typically, wider cracks signify more serious issues than thinner cracks. Cracks less than 1/8-inch thick are considered stress cracks and are harmless, while cracks 1/4-inch wide and larger are often more serious.
How long do Settlement cracks appear?
As these 'wet' construction materials (plaster, mortar and concrete) contain a lot of water, it usually takes several months for the shrinkage cracks to occur.
What are four causes of cracks in foundation walls quizlet?
2. What are four causes of cracks in foundation walls _____________. (a) shrinkage, differential settling, heaving, vertical forces.
What are 3 examples of where flashing would typically be found on exterior walls?
What are 3 examples of where flashings would typically be found on exterior walls. Over windows or doors, at bottoms of walls, at horizontal siding joints in panel type siding.
How are homes attached to foundation?
Nearly all homes with slab foundations that were originally built to code will have anchor bolts or straps. However, if the house is not bolted to the slab, you have an earthquake weakness. Newer homes generally have anchor bolts or straps. If you have an unfinished garage, you may be able to see the anchor bolts.
Which way do you lay plywood subfloor?
Install plywood underlayment smooth side up. To avoid damage to the surface, install underlayment immediately before laying the finish flooring.
Which way should subfloor be laid?
0:573:02Sub-floor Installation Tips from Georgia-Pacific - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf your panels are tongue and groove they should be butted lightly together with the side markedMoreIf your panels are tongue and groove they should be butted lightly together with the side marked this side down resting on the supports.
How do you fix uneven plywood subfloor?
What can I do with an uneven subfloor?Wood underfloors will most likely have to be ripped up and a new one installed to ensure consistency.You can also use a flooring underlayment which can smoothen up any remaining peaks and valleys in the subfloor.More items...•
How do I even out my plywood subfloor?
Pour the liquid-like floor leveler onto the subfloor and smooth it out with a trowel. Gravity will help it settle into the low areas. Remove any excess floor leveler and feather it around the edges so it blends with the rest of the floor. Let the floor leveler dry overnight or as indicated by the manufacturer.
Why do concrete slabs settle?
Soil erosion is another big cause, and that can be related to water leaks underneath and heavy rains. If you have too many trees around your property, the roots can cause the concrete slabs to become unstable, while in other cases, not compacting the soil enough during construction could be a reason. In worst cases, pests like rats and mice may take off a chunk of soil underneath the slab, and that can cause the slab to settle.
Can concrete settle?
Concrete slabs can settle overtime, and that can impact the aesthetic value of your home. More than that, unstable concrete slabs can cause accidents, especially if you have kids and pets at home. Concrete slabs may settle for many reasons, but the good news is you can fix the problem without destroying everything. Concrete slab settlement is most common in patios and driveways, and in this post, we are discussing the causes, solutions, costs of repair and other aspects that matter.
Is concrete raising covered by insurance?
However, we do recommend that you go for concrete raising as soon as possible, because if the soil underneath is unstable, the damages can increase in no time. Cost of concrete raising is not generally covered under insurance.
What causes a concrete floor to settle?
Some of the most common causes for slab settlement include drying and shrinking of soil under a slab, poorly compacted fill soils, and washout of soil.
Can plumbing lines be installed under concrete?
A common building practice is to install plumbing lines below concrete slabs. In some conditions, plumbing lines under a slab can leak, causing erosion and soil is pushed away from under the concrete slab.#N#This displaced soil creates a void beneath the slab, causing the slab to crack and settle.
How to tell if a slab has risen or fallen?
If you can identify an area that has not moved, a laser level survey can determine if the surrounding slab has risen or fallen from its original level.
What to do if you suspect slab movement?
If slab movement is suspected, it’s always a good idea to engage a structural engineer. We are able to efficiently determine if the damage observed is a life-safety issue, structural, or cosmetic. We can also determine if the damage is significant enough to engage a geotechnical engineer. Finally, we can provide repair documents and details to fix damage caused by vertical slab movement. If you run across damage you suspect might be the result of slab movement, contact a structural engineer.
What documents are needed to determine if a slab is vertical?
When I know there is suspected vertical slab movement, the most helpful documents are the civil plans and geotechnical reports . For example, if I see on the civil grading plan that this building was fully or partially built on 15 feet of fill, there is a good chance the subgrade under the slab may be experiencing settlement. Generally, the fill is placed and compacted at the time of construction, but with large amounts of fill, post-construction consolidation is a possibility.
Why does my soil heave?
Expansive soils can heave up due to any source of excess moisture, such as high water tables, failed pavement sealants allowing moisture into the subgrade, or even small leaks in underground plumbing lines. However, to make things even more confusing, expansive soils don’t always mean heave.
Why are interior doors not opening?
Interior doors unable to open or sticking due to racking caused by a sloped slab. Damaged ceiling tiles due to grids supported on the edges by slab- supported walls and in the middle by roof structure. Damage at utility lines entering the building through foundations.
Do expansive soils heave?
However, to make things even more confusing, expansive soils don’t always mean heave. Expansive soils are more generally known as high volume change soils. As these soils take on moisture, they swell, but as the moisture dries out, the soils shrink, resulting in settlement.
Why does a concrete slab foundation fail?
What we see most commonly is that a corner of a room settles and the rest of the structure remains intact. Usually this is due to bad drainage, ground movement, subsidence or poor construction.
What does it mean when a floor has a slight slope?
That the floor has a slight slope. A gap may be visible at the baseboards that is greater on one end of the room than the other. The baseboards have been installed at a sloping angle or quarter round added in a room that has carpet. A door may be catching in the frame.
How far away from the foundation should a downspout be?
Downspouts will need to be piped away, a minimum of 8 ft from the foundation. A concrete leveling company that can “mud jack” or lift the slab will need to be hired. They can usually repair the foundation in one day without too much disturbance to your home.
What happens if you settle too much?
However, only a certain amount of settlement and movement should occur. If too much settlement happens, serious foundational problems could result .
What is the difference between initial settlement and ongoing settlement?
It should also be noted that there’s a difference between initial settlement and ongoing settlement due to site factors. Initial settlement happens within the first few years of construction – as mentioned above. Ongoing settlement due to site factors is continued settlement that’s related to site-specific issues. In other words, this is settlement that will likely continue over time and needs to be monitored and handled.
What is Foundation Settling?
Settling is essentially the all-encompassing term used to describe the natural changes that take place in a foundation over the years. The two major culprits of foundation settling are time and weather.
Why does concrete shrink?
Concrete naturally shrinks as part of the curation process. This shrinkage is even visible to the naked eye if you look for the gaps between the edges of a slab and the foundation wall. This isn’t just the process of the concrete losing water, but is actually part of the chemical reaction that takes place.
How do you know if your foundation is shifting?
However, if any of the following signs are present, then they could indicate a larger issue: Wall cracks. If you see jagged cracks running at 45-degree angles throughout your home, this is a telltale sign that your foundation is shifting. In fact, it’s shifting so much that the sheetrock is being torn apart.
How to tell if a roof is compromised?
When the foundation is compromised, the tallest point of the structure will also be compromised. Look for cracks, gaps, and other signs on the top story of your home.
How long does it take for a new home to settle?
If there’s been improper soil preparation or extreme weather conditions, it’s possible for brand new homes (less than five years old) to see substantial settlement. This generally happens when a home is built during a drought, and a rainy season occurs after construction is completed. The clay soil expands and the house experiences some settlement. Then, if another drought follows, the clay will retract and it’s possible to see a few inches of settlement in a matter of weeks or months.
Why does a slab have a gap between the foundation and the slab?
Keep in mind that a gap between slab and foundation wall is very common and can occur due simply to slab shrinkage, and that even slab settlement on soft fill is common (hasty building or water under the slab) and that those do not necessarily involve the footing and foundation and thus may not be a risk to the structure.
What happens if a floor slab is reinforced with steel?
If the floor slab was reinforced with steel the entire slab may pitch in the direction of settlement. This condition occurs if the concrete was reinforced by steel or fiber cement, but was poured inside of a separate concrete or masonry block foundation.
What is settlement crack?
Settlement cracks in a conventional concrete floor slab which has been poured inside a separate foundation wall (and often resting at its edges on the building's foundation wall footings) are usually not connected to the foundation wall and are not supporting any structure [except possibly Lally columns, discussed below].
What is a heaving damage to foundation walls?
heaving damage to foundation walls & cracking foundations or slabs due to Iron sulfide mineral (pyrrhotite) inclusions in concrete or due to building on Iron sulfide mineral (pyrrhotite) shale.
What does the round crack in the basement mean?
My drawing, from an illustration I originally produced for a home inspection certification exam, the round crack surrounding a structural column in a basement is taken to indicate possible settlement of the pier supporting the post base.
What are the different types of foundation failure?
This article series describes how to recognize and diagnose various types of foundation failure or damage, such as foundation cracks, masonry foundation crack patterns, and moving, leaning, bulging, or bowing building foundation walls.
What is floating concrete slab?
A floating concrete slab is one which is poured at a (generally) uniform thickness on the ground without a separate footing. Watch out: Beware, in areas of wet soils, expansive clays, freezing climates, or unstable soils, floating slabs may be exposed to extra stresses and may tip or crack.
